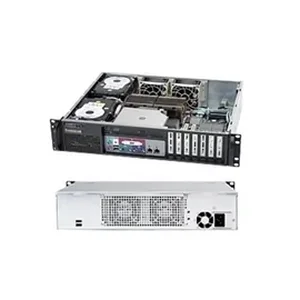

Supermicro CSE-523L-505B Case CSE-523L-505B 500W 2U Chassis supports for maximum motherboard 12x10 ATX Brown Box

Form Factor
2U Chassis - supports for maximum motherboard sizes of 12" x 10" ATX
Processor Support
Dual and Single Intel and AMD processors
Dimensions
Height:3.5" (89 mm)
Width:16.8" (426 mm)
Depth:14.5" (369 mm)
Gross Weight:28 lbs (12.7 kg)
Packaging (W x H x L) :23" (584 mm) x 10" (254 mm) x 20" (508 mm)
Available Color:Black
Expansion Slots
7 low-profile expansion slot(s)
Drive Bays
2 x 3.5" fixed drive bay
Optional Upto 4 x 2.5" fixed drive bay
Peripheral Drives
Optional 1 x slim DVD-ROM drive bay
Front Panel
Buttons:Power On/Off button
System Reset Button
LEDs:2 Network Activity LEDs
HDD activity LED
Power Status LED
Power Fail LED
System Information LED
Systems Cooling
Fans:2 x 8cm hot-swap exhaust fan(s) air shroud
Operating Environment (System)
Operating Temperature Range:5^oC - 35^oC (41^oF - 95^oF)
Non-Operating Temperature Range:-40^oC - 70^oC (-40^oF - 158^oF)
Operating Relative Humidity Range:8% - 90% (non-condensing)
Non-Operating Relative Humidity Range:5% - 95% (non-condensing)
Power Supply
1U 500W Multi-output power supply w/ PMbus, 80Plus Platinum
Power Efficiency:93%
Total Output Power and Input:500W with Input 100 - 240Vac
AC Input Frequency:50-60Hz
Dimensions (L x W x H) :180 x 100 x 40 mm
Output Type:24pin ATX
-12V:Max: 0.2A / Min: 0A
+12V:Max: 41A / Min: 0.5A (100Vac - 240Vac)
+5V:Max: 15A / Min: 0.2A
+3.3V:Max: 12A / Min: 0.2A
+5Vsb:Max: 3A / Min: 0A
Certification: Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC:BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL
Item Dimension (L inchxW inchxH inch)
20 x 10 x 23 Weight
28.00lb Warranty Information
1 Year
