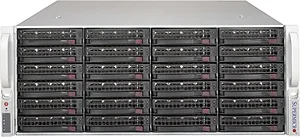

Supermicro CSE-846BE1C-R1K03JBOD(5YR SuperChassis 846BE1C-R1K03JBOD Drive Enclosure - 4U Rack-mountable - Black

Form Factor
4U JBOD storage chassis Available Color
Black Drive Bays
24 x 3.5" hot-swap HDD bays for JBOD solution Qualified SAS Controllers
AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter
AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller Backplane
24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD Front Panel
Buttons
Power On/Off button
System Reset Button
Unit Identification (UID) button LEDs
1 Network Activity LEDs Systems Cooling
Fans
3 x 8cm hot-swap redundant PWM cooling fan(s)
2 x 8cm hot-swap exhaust fan(s) and air shroud System Monitoring
IPMI Operating Environment (System)
Operating Temperature Range
5^oC - 35^oC (41^oF - 95^oF) Non-Operating Temperature Range
-40^oC - 70^oC (-40^oF - 158^oF) Operating Relative Humidity Range
8% - 90% (non-condensing) Non-Operating Relative Humidity Range
5% - 95% (non-condensing) Power Supply
1U 800/1000W Redundant Titanium Single Output Power Supply W/PMbus Power Efficiency
96% Total Output Power and Input
800W with Input 100 - 127Vac
1000W with Input 200 - 240Vac
1000W with Input 200 - 240Vdc AC Input Frequency
50-60Hz
