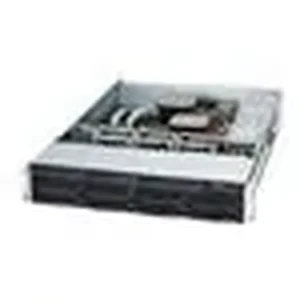

CSE-825TQ-R740LPB(3YR) - Supermicro Case CSE-825TQ-R740LPB 2U 740W 8x3.5inch 2xFixed 3.5inch Black Retail

Form Factor
2U chassis support for motherboard size -
12" x 13", 13.68" x 13" E-ATX and 12" x 10" ATX

Processor Support
Supports dual, single Intel / AMD processors

Available Color
Black Expansion Slots
7x low-profile full-length expansion slots

Drive Bays
Hot-swap
8x 3.5" SAS / SATA Hot-swap drive bays
SAS or enterprise SATA HDD only recommended

SAS Backplane
1x 2U SAS backplane w/ Enclosure Management

Peripheral Drives
DVD-ROM :Slim DVD-ROM drive (Optional) Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED
Power fail LED
Ports: 2x USB Ports + DB9 COM Port (optional) System Cooling
Fans: 3x 80x38mm 4-pin PWM Fans

System Monitoring
Chassis intrusion switch

Power Supply with Power Distributor
740W (1+1) Redundant high-efficiency power supply with PMBus
AC Input
100-240 V, 50-60 Hz, 9-3.5 Amp
DC Output
4 Amp at +5V standby
61.7 Amp at +12V
With Power
Distributor +5V: 30 Amp
+3.3V: 24 Amp
+5VSb: 4 Amp
Certification
80 PLUS Platinum Regulatory (Power Supply)
Power Supply Safety / EMC
USA - UL listed
Canada - CUL listed
Germany - TUV Certified
EN 60950/IEC 60950-Compliant
CB Report
CCC Certification Item Dimension (L"xW"xH"):
25.5 x 17.5 x 3.5

Weight:
58 lb

Warranty Information:
1 Year
