4 Available
Condition: New
Technical InformationMotherboard Supported: ATXNumber of Fans Supported: 6Number of Fans Installed: 4Installed Fan Size: 1.57"BaysNumber of External 3.5" Bays: 4Number of Total Expansion Bays: 4I/O ExpansionsNumber of Total Expansion Slots: 1Power DescriptionPower Supply Installed: YesNumber of Power Supplies Installed: 1Power Supply Wattage: 350 WPhysical CharacteristicsColor: BlackCompatible Rack Unit: 1UForm Factor: Rack-mountableHeight: 1.7"Width: 17.2"Depth: 19.9"

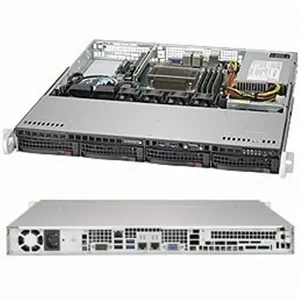

The Supermicro CSE-813MFTQC-350CB2 is a 1U rack-mountable computer chassis designed for IT environments requiring a compact server solution. This brown box unit includes a 350W Platinum-level power supply, offering 93% power efficiency for reduced operational costs. It features four 3.5-inch hot-swap bays with a 12Gbps backplane, supporting SAS3/SATA3 HDDs or SSDs, which is suitable for storage-intensive applications or database servers. The chassis supports ATX motherboards up to 12" x 10" and accommodates dual or single Intel/AMD processors. Cooling is managed by four pre-installed 40x28mm PWM fans, with an option to add two more for enhanced thermal performance. A single full-height expansion slot is available for add-in cards. This product is intended for businesses and IT professionals building custom server configurations where space efficiency and reliable storage are critical.
Form Factor
1U Chassis for motherboard support size: (12" x 10") (9.6" x 9.6") Processor Support
Dual, single Intel / AMD processors Available Color
Black Expansion Slots
1 full height expansion slot(s) Drive Bays
4 x 3.5" hot-swap SAS/SATA Backplane
1U 4-Port 12Gbps Backplane Support 4x3.5" SAS3/SATA3 HDD/SSD Peripheral Drives
Optional 1 x Slim DVD-ROM Drive Front Panel
Buttons:
Power On/Off button
System Reset Button
LEDs:
2 Network Activity LEDs
HDD activity LED
Power Status LED
System Information LED Motherboard (for CSE- 813MFTQC-350CB2)
X11SPi-TF
X11SPL-F
X11SPM-TF
X11SPM-TPF
X11SPM-F
H11SSL-NC
H11SSL-C
H11SSL-i Systems Cooling
Fans:
4 x 40x28mm PWM fan(s)
Optional 2 x 40x28mm PWM fan(s) Operating Environment (System)
Operating Temperature Range: 5oC - 35oC (41oF - 95oF)
Non-Operating Temperature Range: -40oC - 70oC (-40oF - 158oF)
Operating Relative Humidity Range: 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) Power Supply
1U 350W Multi-output power supply Platinum level
Power Efficiency: 93%
Total Output Power and Input:
350W with Input 100 - 240Vac
AC Input Frequency: 50-60Hz
Dimensions (L x W x H): 180 x 100 x 40 mm
Output Type: 24pin ATX
-12V: Max: .2A / Min: 0A
+12V: Max: 29A / Min: .5A (100Vac - 240Vac)
+5V: Max: 15A / Min: .2A
+3.3V: Max: 12A / Min: .2A
+5Vsb Max: 3A / Min: 0A
Certification: Platinum Certified Regulatory (Power Supply)
Power Supply Safety / EMC:
BSMI
CCC
CE/EMC
FCC class B
TUV/CB Item Dimension (L"xW"xH")
30 x 24 x 9
Weight
40 lbs
Warranty Information
1 Year
This 1U chassis is designed to support ATX motherboards with dimensions up to 12" x 10" or 9.6" x 9.6".
The included 1U 4-port 12Gbps backplane supports four 3.5-inch SAS3/SATA3 hard disk drives (HDDs) or solid-state drives (SSDs).
The chassis comes with one installed 350W Platinum-level power supply and four 40x28mm PWM fans. It also includes the necessary backplane for the hot-swap drive bays.
Yes, the installed 350W multi-output power supply is Platinum-level certified, indicating a power efficiency of 93%.
CSE-813MFTQC-350CB2 - Supermicro Case CSE-813MFTQC-350CB2 1U 4x3.5 inch HotSwap SAS/SATA 350 Watts Brown Box
