Special Order
Ships in 1-2 weeks
Condition: New

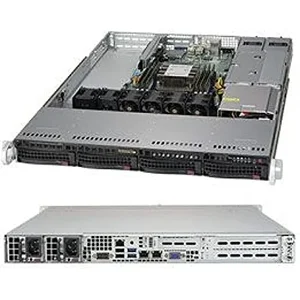

The Supermicro CSE-815TQC-R504WB2 is a 1U rackmount server chassis designed for IT environments requiring high-density storage and efficient power management. This brown box unit includes a 500W redundant power supply with 94% efficiency, suitable for continuous operation in data centers or server rooms. It features four 3.5-inch hot-swap SAS/SATA drive bays, supported by a 12Gbps backplane, making it suitable for enterprise SAS or SATA HDDs. The chassis is optimized for Supermicro X11 WIO (W series) motherboards, accommodating sizes up to 12.3" x 13.4", and supports single or dual Intel and AMD processors. Cooling is managed by four 40x56mm counter-rotation PWM fans. With two full-height and one low-profile expansion slots, this chassis provides a foundation for building compact servers or storage appliances where space and reliability are critical factors.
This chassis is optimized for Supermicro X11 WIO (W series) motherboards and can support motherboard sizes up to 12.3" x 13.4". The X11SCW-F motherboard is specifically mentioned as compatible.
It supports four 3.5-inch hot-swap SAS/SATA drives. Enterprise SAS or enterprise SATA HDDs are recommended for use with its 1U 4-Port 12Gbps backplane.
The unit includes a 1U 500W redundant single output power supply with PMbus, a 1U 4-Port 12Gbps backplane, and four 40x56mm counter-rotation PWM fans. It is described as a 'Brown Box' item.
The chassis includes a 1U 500W redundant single output power supply with PMbus. It has a power efficiency of 94% and operates with an AC input frequency of 50-60Hz, accepting 100-240Vac input.
CSE-815TQC-R504WB2 - Supermicro Case CSE-815TQC-R504WB2 1U 4Port 4x3.5 hot-swap SAS/SATA 500W Brown Box
