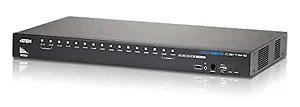

Aten Technologies CS17916 16-Port USB HDMI/Audio KVM Switch, Cascadable to 256 Computers, Multi-Display, 1920x1200@60Hz

SKU: KU4IFH9A4M |  Mfg. Part: CS17916  | UPC: 672792005572  |  0 Reviews  |  Share Make an offer

1 Available
Condition: New

$764.65  $1,032.28
 Free Shipping for this Item
 Free pickup in Frisco, TX
Ready in 3–5 business days. Choose “Local Pickup” at checkout.

Product Overview

The Aten CS17916 is a 16-port USB HDMI KVM switch designed for IT environments requiring centralized control over multiple computer systems. This device allows a single local user to manage up to 16 computers, each connected via HDMI for video and USB for keyboard, mouse, and other peripherals. It supports a maximum resolution of 1920 x 1200, suitable for standard display requirements in server rooms, data centers, or test labs. The switch consolidates access, reducing the need for multiple keyboards, monitors, and mice, thereby optimizing workspace and improving operational efficiency. It addresses the challenge of managing numerous systems from a single console, making it a practical solution for administrators and technicians who need reliable, direct access to various machines without physical relocation.

Technical Specifications

  • Computer Connections Direct: 16
  • Computer Connections Maximum: 256 (via Cascade)
  • Port Selection: OSD, Hotkey, Pushbutton
  • Console Ports: 1 x HDMI Female, 2 x USB Type A Female, 2 x 3.5mm Audio Jack Female (Green; 1 x front panel, 1 x rear panel)
  • KVM Ports: 16 x HDMI Female, 16 x USB Type B Female, 16 x 3.5mm Audio Jack Female (Green)
  • Firmware Upgrade Port: 1 x RJ11 Female
  • Power Connector: 1 x DC Jack
  • USB Hub Ports: 2 x USB Type A Female (1 x front panel, 1 x rear panel)
  • Port Selection Switches: 16 x Pushbutton
  • Reset Switch: 1 x Semi-recessed Pushbutton
  • Firmware Upgrade Switch: 1 x Slide Switch
  • USB Link LEDs: 16 (Green)
  • Power LED: 1 (Dark Green)
  • On Line / Selected LEDs: 16 (Orange)
  • Keyboard / Mouse Emulation: USB
  • Video Resolution: 1920 x 1080 @ 60Hz; 1920 x 1200 @ 60Hz
  • Scan Interval: 1 – 255 seconds (default: 5 sec.)
  • Power Consumption: DC5V:9.18W:69BTU/h
  • Operating Temperature: 0 – 50°C
  • Storage Temperature: -20 – 60°C
  • Humidity: 0 – 80% RH, Non-condensing
  • Housing: Metal
  • Weight: 3.86 kg ( 8.5 lb )
  • Dimensions (L x W x H): 43.24 x 25.72 x 4.40 cm (17.02 x 10.13 x 1.73 in.)

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Shipping Weight:
  • Package Size:
  • TAA Compliant:
  • Country of Origin:
  • Category:
  • Date First Available:
  • Aten Technologies
  • CS17916
  • B00LV9Z1BC
  • 672792005572
  • New
  • 12.4 lbs
  • 20 x 6 x 13 in
  • Yes
  • TW
  • KVM Switches
  • July 16, 2014
