Technical Specifications
Compliant with HDMI 1.3 and HDCP 1.2
Transport protocol:
HDbitT Support connections:
1-to-1 connection (extender)
One-to-Many connection: Splitter
Requires HDMI HDbitT Over Cat6 Extender with IR and Loop-out - Receiver, sold separately
Through dedicated Gigabit Ethernet switch/router), realize unlimited extension
Supports 2-Ch PCM stereo audio
Supports full frequency IR signal from 20KHz to 60KHz
Resolution:
480p / 720p / 1080i / 1080p 60Hz
Aluminum housing with wall mount design
Product:

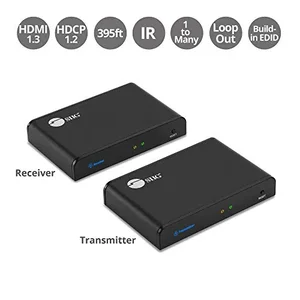

Transmitting unit (TX):
Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x 19-pin HDMI, Type A, Female, Loop-out
1x 3.5mm jack, IR Blaster
1x 8-pin, RJ45, HDbitT signal output
1x Power jack
1x Reset button
Receiving unit (RX):
Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x 3.5mm jack, IR Receiver
1x 8-pin, RJ45, HDbitT signal input
1x Reset button
1x Power jack
Power adapter:
Input: 100-240V / 50-60Hz
Output: DC 5V/1A
UL listed: E335801 / Level: VI
Environmental conditions:
Operating temperature: 32 to 122 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Item Dimension (L"xW"xH")
4 x 8 x 6
Weight
2.00LB
Warranty Information
2 years
