Product Overview

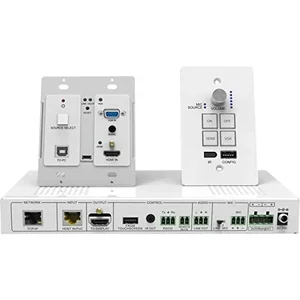

Wallplate design allows you to select and switch between any of the 2 source devices, 1 HDMI and 1 VGA, to display on an HDMI display up to 30 meters with audio output and microphone inputs. Great for education, boardrooms, waiting rooms
Technical Specifications
- Supports HDMI 1.4 and HDCP 1.4
- Output resolution:
1024x768, 1280x720, 1280x800, 1360x768, 1600x1200, 1920x1080, or 1920x1200
- Bandwidth:
10.2Gbps
- Switch freely between HDMI and VGA signal input
- Supports MIC input
- Amplifier output:
2x20Watt at 4ohms
- Customizable control panel supports IR learning for convenient device control
- Supports UPNP
- Product: Transmitting unit (TX)
Connectors:
-1x 19-pin HDMI, Type A, Female, Input
-1x 15-pin VGA, D-Sub, Female, Input
-1x 3.5mm, Stereo Audio, Input
-1x 8-pin, RJ45, HDBaseT/PoC output
-1x 8-pin, RJ45, Connect to Control Panel Power/RS-232
-1x Blue-Backlight button, Source select
-1x 4-pin USB Type-B, Female, Connect to PC
-1x 5-pin Micro USB, Firmware update
-1x Reset button
- Product: Receiving unit (RX):
Connectors:
-1x 19-pin HDMI, Type A, Female, Output
-1x 8-pin, RJ45, HDBaseT/PoC input
-1x 8-pin, RJ45, TCP/IP Network
-1x 4-pin USB, Touchscreen
-1x 3.5mm jack, IR Out
-1x 3-pin, RS-232, Phoenix connector
-1x 2-pin, Remote Mute, Phoenix connector
-1x 3-pin, Audio Line out, Phoenix connector
-1x 3-pin, MIC input, Phoenix connector
-1x 4-pin, 2x20Watt at 4ohms, Power connector
-1x Power jack, DC 24V input
- Product: Control Panel:
Connectors:
-1x 4-pin USB Type-A, U-disk configuration data
-1x 8-pin, RJ45, Connect to Transmitter Power/RS-232
-1x Volume Knob, volume control
-4x Blue-backlight button, ON / HDMI / VGA / OFF control
-1x IR sensor, receive IR signal via IR remote
-1x 3-Pin, RS-232, Phoenix connector
-1x 5-pin, Micro USB, Firmware update
- Power adapter:
Input: 100-240V / 50-60Hz
Output: DC 24V/2.71A
- Environmental conditions:
Operating temperature: 32 to 122 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 10 to 90% RH (non-condensing)
- Certifications/Standards:
FCC, CE, RoHS
Item Dimension(L inchxW inchxH inch)
12 x 16 x 3
Weight
5.00lb
Warranty Information
3 years
