CE-DP0K11-S1 - Siig TECHNICAL SPECS DP TO HDMI MST HUB, 21.6GBPS 7.1 SURROUND AUDIO MIRROR/ EXTEND AN

5 Available
Condition: New

$84.66  $114.29
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

DP TO HDMI MST HUB,21.6GBPS,DUAL HDMI FOR 4K30HZ,MIRROR/ EXTEND AND PANORAMIC VI

Expert Overview

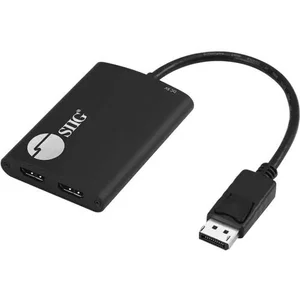

The Siig CE-DP0K11-S1 is a DisplayPort to HDMI MST (Multi-Stream Transport) hub designed for business and IT professionals requiring dual HDMI output from a single DisplayPort source. This device facilitates the connection of two HDMI displays, supporting resolutions up to 3840x2160 at 30Hz per output. It is suitable for extending or mirroring a desktop across multiple screens, or for creating a panoramic video wall, provided a compatible AMD Eyefinity or NVIDIA Surround graphics adapter is used. The hub is compliant with DisplayPort 1.2a specifications and supports 7.1 channel audio. It addresses the need for expanded display configurations in office environments, control rooms, or digital signage applications where a DisplayPort-equipped system needs to drive multiple HDMI monitors. Power is supplied via an included Micro USB cable.

Technical Specifications

Chipset:
STDP4320 Maximum resolution up to 3840x2160 at 30Hz
Compliant with DisplayPort 1.2a specifications
Supports 7.1 Ch audio up to 192kHz sampling rate
Display Modes:
Mirror, Extended, Panoramic video wall
Note: AMD Eyefinity or NVIDIA Surround technology graphics adapter is required to support Panoramic Video Wall mode Total Available Bandwidth 21.6Gbps (100%):
3840x2160 at 30Hz (40%), 2560x1600 at 60Hz (38%), 2560x1440 at 60Hz (35%), 1920x1200 at 60Hz (30%), 1920x1080 at 60Hz (22%)
Note: Make sure the total combined resolution bandwidth among all displays does NOT exceed 100%. Product:
DisplayPort cable (embedded): 12.6 inches
Color: Black
Housing: Aluminum
Connector:
1x 20-pin, DisplayPort, Male, Input
2x 19-pin, HDMI, Type A, Female, Output
1x 5-pin, Micro USB, Female, USB power Input
Micro USB power cable:
19 inches
Environmental conditions:
Operating temperature: 32 to 122 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 20% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
TAA compliant
Item Dimension (L"xW"xH")
1 x 1 x 1
Weight
1.00 LB
Warranty Information
3 years

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • TAA Compliant:
  • Country of Origin:
  • Siig
  • CE-DP0K11-S1
  • B0845X7J72
  • 662774043302
  • New
  • 0.3 lbs
  • 9 X 1 X 5
  • Aug 12, 2026
  • Nov 29, 2019
  • Yes
  • TW
Product Identifiers: Brand: Siig • Part #: CE-DP0K11-S1 • UPC: 662774043302 • ASIN: B0845X7J72 • Category: Power Cables • TAA Compliant

Frequently Asked Questions

What display modes does this hub support?

The hub supports Mirror, Extended, and Panoramic video wall display modes. Panoramic video wall mode requires an AMD Eyefinity or NVIDIA Surround technology graphics adapter.

What is the maximum supported resolution per HDMI output?

This hub supports a maximum resolution of 3840x2160 at 30Hz for each HDMI output. The total combined resolution bandwidth across all displays must not exceed 100% of the available 21.6Gbps.

What is included with the CE-DP0K11-S1?

The product includes the DisplayPort to HDMI MST hub with an embedded 12.6-inch DisplayPort cable, and a 19-inch Micro USB power cable.

Does this hub support audio transmission?

Yes, the hub supports 7.1 channel audio with a sampling rate up to 192kHz, compliant with DisplayPort 1.2a specifications.
