CE-H22K12-S1 - Siig TRUE 4K PERFORMANCE DISTRIBUTES A SINGLE | Aztek Computers
29+Years
SKU: KXNOGGI8VM |  Mfg. Part: CE-H22K12-S1  | UPC: 662774027456  |  0 Reviews  |     Share

CE-H22K12-S1 - Siig TRUE 4K PERFORMANCE DISTRIBUTES A SINGLE FULL HD HDMI SOURCE SIGNAL TO 2 HDMI DI

1 Available
Condition: New

$54.83  $74.02
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

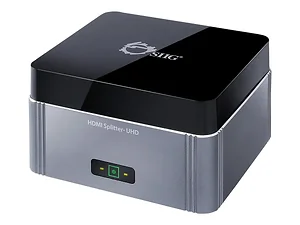

SIIGs Premium 2Port HDMI Splitter with EDID 4Kx2K 60Hz is designed to distribute HDMI signals from a HDMI source device to 2 HDMI display units simultaneously It enables you to stream video contents from your HDMI source device such as computer settop box Bluray player and game console to two HDMI displays flawlessly It supports up to 4Kx2K 60Hz UltraHD video resolution and 71channel audio to bring you crystal clear stunning video images with high fidelity immersive sound quality EDID management switches are integrated to allow most types of TVs or monitors to be utilized and quickly configured for maximum compatibility It is easy and hasslefree to install with no software installation required Sleek and stylish wallmountable design makes integration easy and modern looking This premium splitter is a great device for digital signage deployment to broadcast high definition audio and video contents for both home and commercial applications

Expert Overview

The Siig Premium 2-Port HDMI Splitter with EDID, part number CE-H22K12-S1, is designed for distributing a single HDMI source signal to two separate HDMI displays simultaneously. This device supports video content from various HDMI source devices, including computers, set-top boxes, Blu-ray players, and game consoles. It is suitable for environments requiring the broadcast of high-definition audio and video to multiple screens, such as digital signage deployments or multi-display workstations. The splitter supports resolutions up to 4Kx2K at 60Hz Ultra HD and 7.1-channel audio. Integrated EDID management switches enhance compatibility with a range of TVs and monitors. The unit features a wall-mountable design and requires no software installation, offering a direct solution for video signal distribution. It supports HDMI 2.0 and HDCP 2.2, with a video bandwidth of 10.2 Gbps.

Technical Specifications

Specifications
Supports 3D, HDMI 2.0 and HDCP 2.2
Video bandwidth: 10.2 Gbps (single-link 340MHz)
Video support 480p/720p/1080i/1080p/4K (3840x2160)
Resolution up to 3840x216060Hz (4K UHD)
LED indication for Power (Green) and Link (Yellow) Color
Black and Deep Grey Housing material
Aluminum and plastic Supported transmission distance
4K at 60Hz: Up to 10m (5m/In, 5m/Out)
4K at 30Hz: Up to 15m (5m/In, 10m/Out)
1080p at 60Hz: Up to 20m (10m/In, 10m/Out) Connector
1x 19-Pin, HDMI, Type A, Female, Input
2x 19-pin, HDMI, Type A, Female, Output
1x 4-pin, DIP Switch, EDID Management Power adapter
Input: 100-240VAC, 50/60 Hz
Output: 5VDC, 2A
AC power plug: North American Standard Environmental conditions
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing) Certifications/Standards
FCC, CE, RoHS Item Dimension (L inchxW inchxH inch)
6 x 10 x 8 Weight
3.00 lb Warranty Information
2 Years

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • TAA Compliant:
  • Country of Origin:
  • Siig
  • CE-H22K12-S1
  • B00YT6V9A6
  • 662774027456
  • New
  • 1.15 lbs
  • 9 X 3 X 6
  • Sep 20, 2026
  • Nov 05, 2018
  • Yes
  • CN
Product Identifiers: Brand: Siig • Part #: CE-H22K12-S1 • UPC: 662774027456 • ASIN: B00YT6V9A6 • Category: Video Cables & Interconnects • TAA Compliant

Frequently Asked Questions

What is the maximum supported video resolution and refresh rate?

The splitter supports video resolutions up to 3840x2160 at 60Hz (4K UHD), along with 480p, 720p, 1080i, and 1080p.

What is the maximum transmission distance supported for different resolutions?

For 4K at 60Hz, it supports up to 10m (5m in, 5m out). For 4K at 30Hz, it supports up to 15m (5m in, 10m out). For 1080p at 60Hz, it supports up to 20m (10m in, 10m out).

What HDMI and content protection standards does this splitter support?

The splitter supports HDMI 2.0 and HDCP 2.2, and it is also compatible with 3D content.

What is included with the splitter?

The product includes the splitter unit itself and a North American standard AC power adapter (Input: 100-240VAC, 50/60 Hz; Output: 5VDC, 2A).
