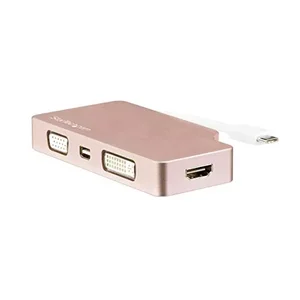

CDPVDHDMDPRG - Startech Accessory CDPVDHDMDPRG Multiport VideoADT 4in1 USB-CtoVGA DVI/HDMI RoseGD Retail

Active or Passive Adapter
Active Adapter Style
Adapters AV Input
USB Type-C AV Output
HDMI
DVI-D
VGA
Mini-DisplayPort Chipset ID
Cypress - CYPD1120
Cypress - CY7C65210
Parade - PS8348B
Parade - PS171 Audio Specifications
HDMI and mDP output - 7.1 surround sound Maximum Analog Resolutions
1920 x 1200 at 60Hz Maximum Digital Resolutions
3840 x 2160 at 30Hz Supported Resolutions
Max HDMI output: 3840 x 2160 at 30Hz
Max mDP output: 3840 x 2160 at 60Hz
HDMI and mDP output: 3840 x 2160, 2560 x 1600, 1920 x 1200, 1920 x 1080, 1280 x 720
DVI and VGA output: 1920 x 1200, 1920 x 1080, 1280 x 720 Wide Screen Supported
Yes Connector A
1 - USB-C (24 pin) DisplayPort Alt Mode Male Input Connector B
1 - Mini-DisplayPort (20 pin) Female Output
1 - VGA (15 pin, High Density D-Sub) Female Output
1 - DVI-D (25 pin) Female Output
1 - HDMI (19 pin) Female Output Note
Only one video output is supported on the video adapter at a time, if multiple connections are made, only one of the outputs will function Humidity
Storage: 5% to 90 % RH (no condensation)
Operating: 10% to 85 % RH (no condensation) Operating Temperature
0^oC to 45^oC (32^oF to 113^oF) Storage Temperature
-10^oC to 70^oC (14^oF to 158^oF) Cable Length
4.5 in (115 mm) Color
Rose Gold Enclosure Type
Aluminum Enclosure Type
Aluminum
