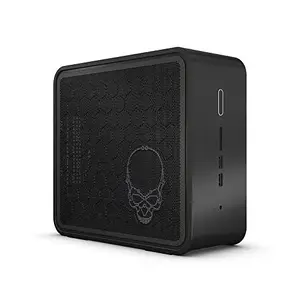

BXNUC9I9QNX1 - Intel BTO NUC

Essentials Product Collection
Intel NUC Kit with 9th Generation Intel Core^TM Processors Code Name
Products formerly Ghost Canyon Supported Operating Systems
Windows 10, 64-bit, Linux Board Number
NUC9i9QNB Board Form Factor
PCIe Internal Drive Form Factor
M.2 SSD Number of Internal Drives Supported
3 Board Chipset
Mobile Intel CM246 Chipset Processor Included
Intel Core^TM i9-9980HK Processor (16M Cache, up to 5.00 GHz) Intel vPro^TM Platform Eligibility
No Number of Cores
8 Number of Threads
16 Processor Base Frequency
2.40 GHz Max Turbo Frequency
5.00 GHz Supplemental Information
Embedded Options Available
No Memory and Storage
Max Memory Size (dependent on memory type)
64 GB
Memory Types
DDR4-2666
Max Number of Memory Channels
2
Max Memory Bandwidth
42.6 GB/s
Max Number of DIMMs
2
ECC Memory Supported
No Processor Graphics
Processor Graphics
Intel UHD Graphics 630
Integrated Graphics
Yes
Graphics Output
2x Thunderbolt 3, HDMI 2.0a
Number of Displays Supported
3
Discrete Graphics
Via PCIe add-in card(s) Expansion Options
PCI Express Revision
Gen3
PCI Express Configurations
2x M.2 PCIe X4 slots (PCH), 1x M.2 PCIe X4 slot (CPU)
Double-wide PCIe X16 (CPU) slot shared with PCIe X4 (CPU) slot, 8" max card length
PCIe x4 Gen 3
1
PCIe x16 Gen 3
1
Removable Memory Card Slot
SDXC with UHS-II support
M.2 Card Slot (storage)
2x via PCH + 1x via CPU (NVMe) I/O Specifications
