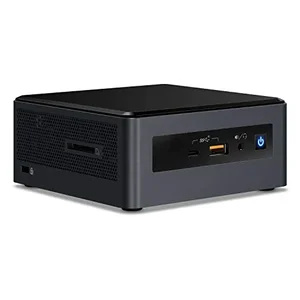

Product Overview
Intel® NUC Mini PCs with Windows 10 are fully complete and ready to work out of the box. Optimized and tuned by Intel, you have peace of mind with a 3-year warranty and world-class Intel customer support.
Technical Specifications
Essentials
Product Collection
Intel NUC Mini PC with 8th Generation Intel Core Processors <
Internal Drive Form Factor
M.2 and 2.5" Drive
Number of Internal Drives Supported
2
Code Name
Products formerly Islay Canyon
Board Form Factor
UCFF (4" x 4")
Socket
Soldered-down BGA
Lithography
14 nm
TDP
15 W
DC Input Voltage Supported
19 VDC
Pre-Installed Operating System
Windows 10, 64-bit
Processor Included
Intel Core i7-8565U Processor (8M Cache, up to 4.60 GHz) Supplemental Information
Embedded Options Available
No
Description
Other features: 16GB Intel Optane Memory M.2 module + 1TB 2.5" HDD, or 128GB SSD + 1TB 2.5" HDD, or 256GB M.2 SSD, and Windows 10, 64-bit Home pre-installed, includes SDXC card slot Memory and Storage
Included Storage
1TB HDD, or 256GB M.2 SSD, or 1TB HDD + 128GB M.2 SSD
Included Memory
8GB LPDDR3 or 8GB LPDDR3 + 16GB Intel Optane
Max Memory Size (dependent on memory type)
8 GB
Memory Types
LPDDR3-1866/2133
Max Number of Memory Channels
2
Max Memory Bandwidth
34 GB/s
ECC Memory Supported
No Processor Graphics
Integrated Graphics
Yes
Graphics Output
HDMI 2.0b, Mini-DP 1.4
Number of Displays Supported
3
Discrete Graphics
Radeon 540X, 2GB GDDR5 Expansion Options
PCI Express Revision
Gen3
PCI Express Configurations
M.2 slot with PCIe X4 lanes
Removable Memory Card Slot
SDXC with UHS-I support
M.2 Card Slot (storage)
22x80 I/O Specifications
Number of USB Ports
6
USB Configuration
2x front and 2x rear USB 3.1 Gen2 2x USB 2.0 via internal headers
USB Revision
2.0, 3.1 Gen2
USB 2.0 Configuration (External + Internal)
0 + 2
USB 3.0 Configuration (External + Internal)
2B 2F + 0
Total Number of SATA Ports
2
Max Number of SATA 6.0 Gb/s Ports
2
RAID Configuration
2.5" HDD/SSD + M.2 SATA/PCIe SSD (RAID-0 RAID-1)
Audio (back channel + front channel)
7.1 digital (HDMI) L+R+mic (F)
Integrated LAN
Intel Ethernet Connection I219-V
Integrated Wireless
Intel Wireless-AC 9560 + Bluetooth 5.0
Integrated Bluetooth
Yes
Consumer Infrared Rx Sensor
Yes
Additional Headers
CEC, 2x USB2.0 Advanced Technologies
Intel Optane Memory Supported
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel vPro Platform Eligibility
No
TPM
No
Intel HD Audio Technology
Yes
Intel Rapid Storage Technology
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Platform Trust Technology (Intel PTT)
Yes Security and Reliability
Intel AES New Instructions
Yes Item Dimension (L"xW"xH")
6 x 5 x 5
Weight
2.46 lbs
Warranty Information
3 year limited
