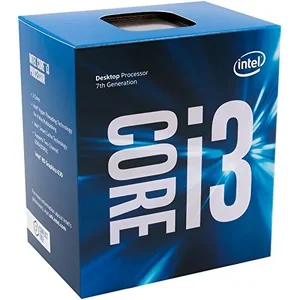

BX80677I37100 - Intel CPU BX80677I37100 Ci3-7100 3.90GHz 3MB LGA1151 2C/4T Kaby Lake Retail

Processor Number
i3-7100
Lithography
14 nm
Performance
of Cores: 2
of Threads: 4
Processor Base Frequency: 3.90 GHz
Cache: 3 MB
Bus Speed: 8 GT/s DMI3
of QPI Links: 0
TDP: 51 W
Memory Specifications
Max Memory Size (dependent on memory type): 64 GB
Memory Types: DDR4-2133/2400, DDR3L-1333/1600 1.35V
Max of Memory Channels: 2
ECC Memory Supported: No
Graphics Specifications
Processor Graphics: Intel HD Graphics 630
Graphics Base Frequency: 350.00 MHz
Graphics Max Dynamic Frequency: 1.10 GHz
Graphics Video Max Memory: 64 GB
4K Support: Yes, at 60Hz
Max Resolution (HDMI 1.4): 4096x230424Hz
Max Resolution (DP): 4096x230460Hz
Max Resolution (eDP - Integrated Flat Panel): 4096x230460Hz
DirectX Support: 12
OpenGL Support: 4.4
Intel Quick Sync Video: Yes
Intel InTru 3D Technology: Yes
Intel Clear Video HD Technology: Yes
Intel Clear Video Technology: Yes
of Displays Supported: 3
Device ID: 0x5912
Expansion Options
Scalability: 1S Only
PCI Express Revision: 3.0
PCI Express Configurations: Up to 1x16, 2x8, 1x8+2x4
Max of PCI Express Lanes: 16
Package Specifications
Sockets Supported: FCLGA1151
Max CPU Configuration: 1
Thermal Solution Specification: PCG 2015C (65W)
TJUNCTION: 100^oC
Low Halogen Options Available: See MDDS
Advanced Technologies
Intel vPro Technology: No
Intel Hyper-Threading Technology: Yes
Intel Virtualization Technology (VT-x): Yes
Intel TSX-NI: Yes
Intel 64: Yes
Instruction Set: 64-bit
Instruction Set Extensions: SSE4.1/4.2, AVX 2.0
Idle States: Yes
Enhanced Intel SpeedStep Technology: Yes
Thermal Monitoring Technologies: Yes
Intel Identity Protection Technology: Yes
Intel Stable Image Platform Program (SIPP): No
Intel Data Protection Technology
Intel AES New Instructions: Yes
Secure Key: Yes
Intel Software Guard Extensions (Intel SGX): Yes
Intel Memory Protection Extensions (Intel MPX): Yes
Intel Platform Protection Technology
OS Guard: Yes
Execute Disable Bit: Yes
Intel Device Protection Technology with Boot Guard: Yes
Item Dimension (L"xW"xH")
5 x 3 x 4

Weight
0.48 lb

Warranty Information
1 year-limited
