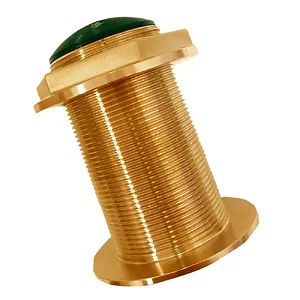

Si-tex BT70MA600 Bronze Low Profile Thru-Hull Medium Frequency CHIRP Transducer - 600W & 80 - 130kHz

Bronze Low Profile Thru-Hull Medium Frequency CHIRP Transducer - 600W & 80 - 130kHz

This series of transducers are designed to minimize drag and perform at high speeds. BT70MA600 is a low-profile thru-hull CHIRP transducer, that matches vessels' deadrise to a specific angle.

Features:

• Bottom detail in shallow and medium depths, down to 274 m (900 ft)
• Medium Frequency
• Function: Depth and Temperature
• Thru-hull mount

Specifications:

• Frequency: CHIRP 80 - 130 kHz
• Material: Bronze
• RMS Power: 600 W
• Beam-width: 24° to 17° at 3db
• Depth: Max 274 m (900 ft)
• Acoustic window: Urethane
• Weight: (oz) 54 / (g) 1540
• Cable Length: (ft) 27 / (m) 8
• Hole Diameter: (inch) 2.38" / (mm) 60.3

*Warning: do not install bronze housing into metal hulls
