BPS-2 - Bps Marine 2-Transducer Ultrasonic Antifouling System - 12VDC

BPS-2 2-Transducer Ultrasonic Antifouling System - 12VDC

The BPS-2 is a two-transducer system that can add antifouling protection to hulls, drives, rudders, stabilizers, and more. This single system can provide ultrasonic antifouling protection for hulls up to 30ft in length or can be combined with additional systems for larger vessels. The BPS-2 can also be tasked with protecting drives and rudders.

The BPS-2 Package Includes:

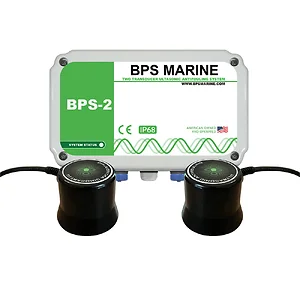

• 1x BPS-2 Control Module with Integrated Power Cable
• 2x Submersible Ultrasonic Transducers with 15ft of Cable
• 1x Epoxy Kit
• 1x Printed Installation and Operation Manual

Specifications:

• Voltage: 12V or 24V DC
• Average Power Draw: 0.5Ah
• Transducer Strength: 60W
• Cable Length: 15ft per transducer
• Frequency: Multi-frequency ultrasonic sweep algorithm (20kHz-42kHz)

Installation Overview:

• No Thru-Hulls: The transducers are installed directly on top of your hull surface using the provided epoxy.
• Install Signal Cable: Each transducer has 15ft of connected signal cable. This ensures an easy installation from the transducer to the controller.
• Mounting the Controller: The BPS-1 Controller runs off of your boat's existing house battery. It is a simple 2-wire connection the the battery bank or distribution panel.
• Enjoy Worry-Free Boating: That's it! Your BPS system is done! Let our advanced antifouling protection do its job. Each system is programmed with a multi-frequency sweeping algorithm to ensure that your boat has the best antifouling protection on the market.

How the Technology Works:

• The Mechanism: The system emits high-frequency ultrasonic waves through the hull & drives, creating a microscopic barrier of resonance.
• Targeting the Root Cause: These ultrasound waves repel biofouling from attaching to your hull before they ever have the chance to attach.
• Eco-Friendly: 100% chemical-free. It does not leach pollutants into the water, making it safe for marinas with strict environmental regulations.
• Marine Life Safe: The frequencies used are outside the hearing range of marine mammals and humans.

Benefits:

• Fuel Efficiency: A clean hull creates less drag. Maintaining hull smoothness ensures you get the best possible MPG and top speed.
• Reduced Maintenance Costs: Significantly extends the life of your bottom paint and reduces the frequency of expensive haul-outs.
• Diver Savings: Reduces the need for monthly hull cleaning services.
• Hard-to-Reach Protection: Unlike paint, ultrasonic waves resonate through complex parts that are difficult to paint and clean, such as stern drives, sea strainers, and rudders.
• Fit & Forget: Once installed, the system runs automatically with zero scheduled maintenance required.

The BPS Marine BPS-2 is a 2-transducer ultrasonic antifouling system designed for marine vessels. Operating on 12VDC or 24VDC, this system provides a chemical-free method to deter biofouling on hulls, drives, and rudders. It is suitable for protecting hulls up to 30ft in length with a single unit, or can be integrated with additional systems for larger vessels. The BPS-2 system utilizes a multi-frequency ultrasonic sweep algorithm (20kHz-42kHz) to create a microscopic barrier that repels marine organisms from attaching to submerged surfaces. This technology aims to reduce drag, improve fuel efficiency, and decrease the need for frequent hull cleanings and repainting. Installation involves epoxy-mounting the transducers directly to the hull surface and connecting the control module to the vessel's existing house battery. The system operates automatically once installed, requiring no scheduled maintenance.
