24V-PRO-8 - Bps Marine PRO-8-Transducer Ultrasonic Antifouling System - 24VDC

PRO-8 8-Transducer Ultrasonic Antifouling System - 24VDC

The BPS-8 is an eight-transducer system that can add antifouling protection to hulls, drives, rudders, stabilizers, and more. This single system can provide ultrasonic antifouling protection for hulls up to 80ft in length or can be combined with additional systems for larger vessels. The BPS-8 is also the perfect solution for vessels under 52' with inboards or sail drives to have one system covering the entire vessel.

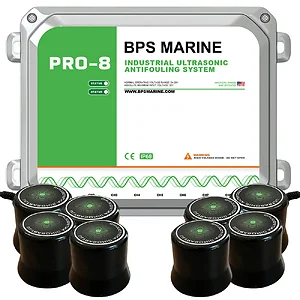

The PRO-8 Package Includes:

• 1x BPS-8 Control Module with Integrated Power Cable
• 8x Submersible Ultrasonic Transducers with 15ft of Cable
• 4x Additional 15ft Extension Cables
• 2x Epoxy Kits
• 1x Printed Installation and Operation Manual

Specifications:

• Voltage: 12V & 24V DC
• Average Power Draw: 2Ah
• Transducer Strength: 60W
• Cable Length: 15ft per transducer
• Frequency: Multi-frequency ultrasonic sweep algorithm (20kHz-42kHz)

Installation Overview:

• No Thru-Hulls: The transducers are installed directly on top of your hull surface using the provided epoxy.
• Install Signal Cable: Each transducer has 15ft of connected signal cable. This ensures an easy installation from the transducer to the controller.
• Mounting the Controller: The BPS-1 Controller runs off of your boat's existing house battery. It is a simple 2-wire connection the the battery bank or distribution panel.
• Enjoy Worry-Free Boating: That's it! Your BPS system is done! Let our advanced antifouling protection do its job. Each system is programmed with a multi-frequency sweeping algorithm to ensure that your boat has the best antifouling protection on the market.

How the Technology Works:

• The Mechanism: The system emits high-frequency ultrasonic waves through the hull & drives, creating a microscopic barrier of resonance.
• Targeting the Root Cause: These ultrasound waves repel biofouling from attaching to your hull before they ever have the chance to attach.
• Eco-Friendly: 100% chemical-free. It does not leach pollutants into the water, making it safe for marinas with strict environmental regulations.
• Marine Life Safe: The frequencies used are outside the hearing range of marine mammals and humans.

Benefits:

• Fuel Efficiency: A clean hull creates less drag. Maintaining hull smoothness ensures you get the best possible MPG and top speed.
• Reduced Maintenance Costs: Significantly extends the life of your bottom paint and reduces the frequency of expensive haul-outs.
• Diver Savings: Reduces the need for monthly hull cleaning services.
• Hard-to-Reach Protection: Unlike paint, ultrasonic waves resonate through complex parts that are difficult to paint and clean, such as stern drives, sea strainers, and rudders.
• Fit & Forget: Once installed, the system runs automatically with zero scheduled maintenance required.

The BPS Marine PRO-8 8-Transducer Ultrasonic Antifouling System, part number 24V-PRO-8, is designed for B2B marine applications requiring proactive biofouling prevention. This 24VDC system utilizes eight submersible ultrasonic transducers to emit multi-frequency ultrasonic waves (20kHz-42kHz) through a vessel's hull and drives. This process creates a microscopic resonance barrier that deters marine organisms from attaching, thereby reducing biofouling. It is suitable for hulls up to 80 feet in length, or for vessels under 52 feet with inboards or sail drives needing comprehensive coverage. The system addresses common operational challenges by maintaining hull smoothness, which contributes to fuel efficiency and potentially extends the lifespan of bottom paint. Installation involves epoxying transducers directly to the hull and connecting the control module to the vessel's 12V or 24V DC house battery, without requiring thru-hulls. This system provides a chemical-free antifouling solution, minimizing environmental impact.
