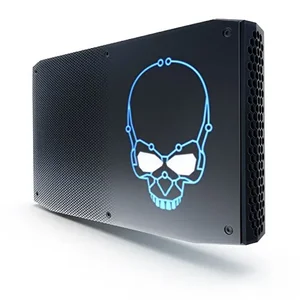

BOXNUC8I7HVK1 - Intel NUC KIT BOXNUC8I7HVK1 i7-8809G Single pack Retail

Product Collection
Intel NUC Kit with 8th Generation Intel Core^TM Processors
Code Name
Products formerly HADES CANYON Board Form Factor
UCFF (5.5" x 8")
Socket
Soldered-down BGA
Internal Drive Form Factor
M.2 SSD
number of Internal Drives Supported
2 Lithography
14 nm
TDP
100 W
DC Input Voltage Supported
19 VDC Processor Included
Intel Core^TM i7-8809G Processor with Radeon^TM RX Vega M GH graphics (8M Cache, up to 4.20 GHz)
Embedded Options Available
No Description
Other features: Includes 2x Thunderbolt 3 (40Gbps) via rear USB-C ports, SDXC card slot and front USB-A and USB-C ports w/ USB 3.1 Gen 2
Max Memory Size (dependent on memory type)
32 GB
Memory Types
DDR4-2400+ 1.2V SO-DIMM
Max number of Memory Channels
2
Max Memory Bandwidth
38.4 GB/s
Max number of DIMMs
2
ECC Memory Supported
No
Integrated Graphics
Yes
Graphics Output
2x Mini-DP 1.2, 2x Thunderbolt 3, F+R HDMI 2.0a
number of Displays Supported
6
Discrete Graphics
Radeon^TM RX Vega M GH graphics
PCI Express Revision
Gen3
PCI Express Configurations
Dual M.2 slots with PCIe x4 lanes
Removable Memory Card Slot
SDXC with UHS-I support
M.2 Card Slot (wireless)
2230
M.2 Card Slot (storage)
22x42/80, 22x80
number of USB Ports
13
USB Configuration
F: USB3, 2x USB 3.1g2 (Type A and C) R: 4x USB3, 2x Thunderbolt3 (USB3.1g2) INT: 2x USB2, 2x USB3
USB Revision
2.0, 3.0, 3.1 Gen2
USB 2.0 Configuration (External + Internal)
0 + 2
USB 3.0 Configuration (External + Internal)
1F, 4R, 2i
Total number of SATA Ports
2
Max number of SATA 6.0 Gb/s Ports
2
RAID Configuration
2x M.2 SATA/PCIe SSD (RAID-0 RAID-1)
Audio (back channel + front channel)
7.1 digital L+R+mic (F) L+R+TOSLINK (R)
Integrated LAN
2x 10/100/1000
Integrated Wireless
Intel Wireless-AC 8265 + Bluetooth 4.2
Integrated Bluetooth
Yes
Consumer Infrared Rx Sensor
Yes
S/PDIF Out Connector
TOSLINK
Additional Headers
CEC, 2x USB2.0, 2x USB 3.0, FRONT_PANEL
number of Thunderbolt^TM 3 Ports
2
Low Halogen Options Available
See MDDS
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel vPro^TM Technology
No
TPM
No
Intel HD Audio Technology
Yes
Intel Rapid Storage Technology
Yes
Intel Virtualization Technology (VT-x)
Yes
