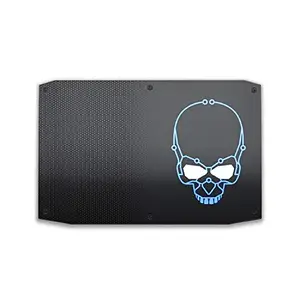

Intel BOXNUC8I7HNKQC1 System BOXNUC8i7HNKQC1 Core i7-7805G 512GB NVMe 16GB DDR4 Windows 10 Pro Retail

Essentials
-Product Collection:
Intel NUC Mini PC with 8th Generation Intel Core^TM Processors
-Code Name:
Products formerly HADES CANYON
-Board Form Factor:
UCFF(5.5" x 8")
-Socket:
Soldered-down BGA
-Internal Drive Form Factor:
M.2 SSD
-of Internal Drives Supported:
2
-Lithography:
14 nm
-TDP:
65 W
-DC Input Voltage Supported:
19
-Pre-Installed Operating System:
Windows 10, 64-bit
-Processor Included:
Intel Core^TM i7-8705G Processor with Radeon^TM RX Vega M GL graphics (8M Cache, up to 4.10 GHz)
Supplemental Information
-Embedded Options Available
No
-Description
Other features: 512GB NVMe SSD, 16GB RAM, Windows 10 x64 Pro pre-installed, includes 2x Thunderbolt 3 (40Gbps) via rear USB-C ports, SDXC card slot and front USB-A and USB-C ports w/ USB 3.1 Gen 2
Memory and Storage
-Included Storage
512GB Intel 760p NVMe SSD
-Included Memory
2x 8GB DDR4-2400
-Max Memory Size (dependent on memory type)
32 GB
-Memory Types
DDR4-2400+ 1.2V SO-DIMM
-Maximum of Memory Channels
2
-Max Memory Bandwidth
38.4 GB/s
-Maximum of DIMMs
2
-ECC Memory Supported
No
Processor Graphics
-Integrated Graphics
Yes
-Graphics Output
2x Mini-DP 1.2, 2x Thunderbolt 3, F+R HDMI 2.0a
-Number of Displays Supported
6
-Discrete Graphics
Radeon^TM RX Vega M GL graphics
Expansion Options
-PCI Express Revision
Gen3
-PCI Express Configurations
Dual M.2 slots with PCIe x4 lanes
-Removable Memory Card Slot
SDXC with UHS-I support
-M.2 Card Slot (wireless)
2230
-M.2 Card Slot (storage)
22x42/80, 22x80
I/O Specifications
- Number of USB Ports
13
-USB Configuration
F: USB3, 2x USB 3.1g2 (Type A and C)/ R: 4x USB3, 2x Thunderbolt3 (USB3.1g2)/ INT: 2x USB2, 2x USB3
-USB Revision
2.0, 3.0, 3.1 Gen2
-USB 2.0 Configuration (External + Internal)
0 + 2
-USB 3.0 Configuration (External + Internal)
1F, 4R, 2i
-Total number of SATA Ports
2
-Maximum of SATA 6.0 Gb/s Ports
2
-RAID Configuration
2x M.2 SATA/PCIe SSD (RAID-0 RAID-1)
-Audio (back channel + front channel)
7.1 digital, L+R+mic (F), L+R+TOSLINK (R)
-Integrated LAN
2x 10/100/1000
-Integrated Wireless
Intel Wireless-AC 8265 + Bluetooth 4.2
-Integrated Bluetooth
Yes
-Consumer Infrared Rx Sensor
Yes
-S/PDIF Out Connector
TOSLINK
-Additional Headers
CEC, 2x USB2.0, 2x USB 3.0, FRONT_PANEL
-Number of Thunderbolt^TM 3 Ports
2
Advanced Technologies
-Intel Virtualization Technology for Directed I/O (VT-d)
Yes
-Intel vPro^TM Platform Eligibility
No
-TPM
No
-Intel HD Audio Technology
Yes
-Intel Rapid Storage Technology
Yes
-Intel Virtualization Technology (VT-x)
Yes
-Intel Platform Trust Technology (Intel PTT)
Yes
Security and Reliability
-Intel AES New Instructions
Yes
Item Dimension (L inchxW inchxH inch)
5 x 1 x 4
Weight
6.65 lb
Warranty Information
3-year limited
