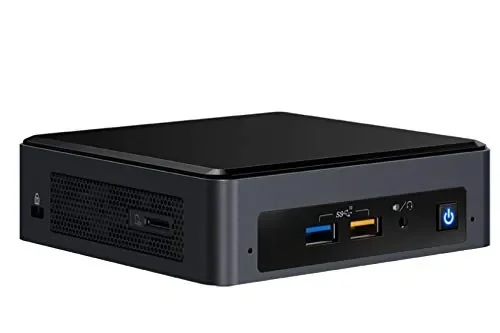

Intel BOXNUC8I3BEK 1PK BOXED NUC KIT NUC8I3BEK

Essentials
Product Collection
Intel NUC Kit with 8th Generation Intel Core^TM Processors
Code Name
Intel NUC Kit NUC8i3BEK
Status
Launched
Supported Operating Systems
Windows 10, 64-bit
Board Number
NUC8BEB
Board Form Factor
UCFF (4" x 4")
Socket
Soldered-down BGA
Internal Drive Form Factor
M.2 SSD
Number of Internal Drives Supported
1
Lithography
14 nm
TDP
28 W
DC Input Voltage Supported
12-19 VDC
Processor Included
Intel Core^TM i3-8109U Processor (4M Cache, up to 3.60 GHz)
Intel vPro Platform Eligibility
No
Number of Cores
2
Number of Threads
4
Processor Base Frequency
3.00 GHz
Max Turbo Frequency
3.60 GHz
Recommended Customer Price
316.25 - 319.70 dollars
Supplemental Information
Embedded Options Available
No
Description
Other features: Includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C, also includes microSDXC card slot, dual microphones
Memory and Storage
Max Memory Size (dependent on memory type)
32 GB
Memory Types
DDR4-2400 1.2V SO-DIMM
Max number of Memory Channels
2
Max Memory Bandwidth
38.4 GB/s
Max number of DIMMs
2
ECC Memory Supported
No
Processor Graphics
Processor Graphics
Intel Iris Plus Graphics 655
Integrated Graphics
Yes
Graphics Output
HDMI 2.0a, USB-C (DP1.2)
Number of Displays Supported
3
Expansion Options
PCI Express Revision
Gen3
PCI Express Configurations
M.2 slot with PCIe X4 lanes
Removable Memory Card Slot
microSDXC with UHS-I support
M.2 Card Slot (storage)
22x42/80
I/O Specifications
Number of USB Ports
6
USB Configuration
2x front and 3x rear USB 3.1 Gen2, 2x USB 2.0 via internal headers
USB Revision
2.0, 3.1 Gen2
USB 2.0 Configuration (External + Internal)
0 + 2
USB 3.0 Configuration (External + Internal)
2B 2F + 0
Total number of SATA Ports
2
Max number of SATA 6.0 Gb/s Ports
2
Audio (back channel + front channel)
7.1 digital (HDMI mDP), L+R mic (F)
Integrated LAN
Intel Ethernet Connection I219-V
Integrated Wireless
Intel Wireless-AC 9560 + Bluetooth 5.0
Integrated Bluetooth
Yes
Consumer Infrared Rx Sensor
Yes
Additional Headers
CEC, 2x USB2.0, FRONT_PANEL
Number of Thunderbolt^TM 3 Ports
1
Advanced Technologies
Intel Optane^TM Memory Supported
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel vPro Platform Eligibility
No
TPM
No
Intel HD Audio Technology
Yes
Intel Rapid Storage Technology
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Platform Trust Technology (Intel PTT)
Yes
Security and Reliability
Intel AES New Instructions
Yes
Item Dimension (L"x W"x H")
6 x 5 x 4
Weight
2.43 LB
Warranty Information
3-year limited
