Product Overview

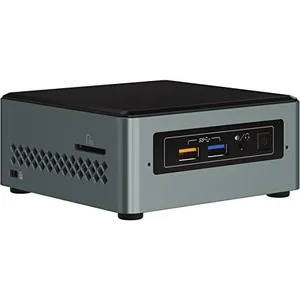

he IntelNUC built with 5th generation Intel Core processors takes the powerful capabilities of a complete desktop system and packages it into 4 small inches. Get premium performance, eye-popping visuals, and home theater features that give you the power to play, create, entertain, and inspire right from your home. And with a replaceable lid, you can customize your NUC to deliver the style and features that fit your life. The Intel NUC gives you the power you need-and doesn't require more than 4 inches of real estate, whether in your living room, den, or office. Discover what's possible with an Intel NUC.
Technical Specifications
Board Form Factor
UCFF (4" x 4")
Socket
Soldered-down BGA
Internal Drive Form Factor
2.5" Drive
Number of Internal Drives Supported
1
Embedded Storage
32 GB
Embedded Options Available
No
Lithography
14 nm
TDP
10 W
DC Input Voltage Supported
12-19 VDC
Pre-Installed Operating System
Windows 10 Home x64
Processor Included
Intel Celeron Processor J3455 (2M Cache, up to 2.3 GHz)
Memory Specifications
Pre-Installed Memory: 2 GB
Max Memory Size (dependent on memory type): 8 GB
Memory Types: DDR3L-1600/1866 1.35V SO-DIMM
Max Number of Memory Channels: 2
Max Memory Bandwidth: 14.9 GB/s
Max Number of DIMMs: 2
ECC Memory Supported: No
Graphics Specifications
Integrated Graphics: Yes
Graphics Output: VGA (HDB15) HDMI 2.0
Number of Displays Supported: 2
Expansion Options
PCI Express Revision: Gen2
PCI Express Configurations: M.2 slot with PCIe x1 lane
Removable Memory Card Slot: SDXC with UHS-I support
M.2 Card Slot (wireless): 22x30
I/O Specifications
USB Revision: 2.0, 3.0
Number of USB Ports: 6
USB 2.0 Configuration (External + Internal): 0 + 2
USB 3.0 Configuration (External + Internal): 2B 2F + 0
Total Number of SATA Ports: 1
Max Number of SATA 6.0 Gb/s Ports: 1
Audio (back channel + front channel): 7.1 digital L+R+mic (F) L+R+TOSLINK (R)
Integrated LAN: 10/100/1000
Integrated Wifi: Intel Wireless-AC 3168 + BT 4.2
Integrated Bluetooth: Yes
Consumer Infrared Rx Sensor: Yes
S/PDIF Out Connector: TOSLINK
Additional Headers: CEC, 2x USB2.0, AUX_PWR, FRONT_PANEL
Package Specifications
Low Halogen Options Available: See MDDS
Advanced Technologies
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel vPro Technology: No
TPM: No
Intel HD Audio Technology: Yes
Intel Virtualization Technology (VT-x): Yes
Intel Data Protection Technology
Intel AES New Instructions: Yes
Item Dimension (L"xW"xH")
26 x 6 x 5
Weight
6.8 lb
Warranty Information
3 year Limited
