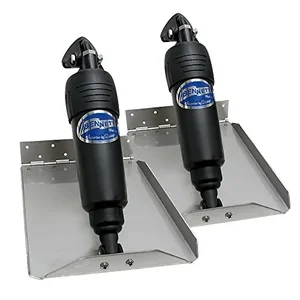

BOLT912ED - Bennett Trim Tabs Bennett 912ED Electric - Edge Mount Limited Space Trim Tab Kits - 12V

912ED Electric - Edge Mount Limited Space Trim Tab Kits - 12V

9" x 12"

Designed with an adjustable upper hinge for transoms with limited vertical space. Tabs turn up for added strength and feature piano-hinged backing plates.

Kits Include:

• (2) 12-volt adjustable upper hinge actuators with 6' wire harnesses and waterproof connectors (BEA3000)
• (2) Stainless steel trim planes (tabs) and mounting plates
• (2) 20' wire harnesses with waterproof connectors (BAW2020)

Features Include:

• Requires less than 6.5" of vertical transom space to install
• Superior seal design inspired by over 50 years of Bennett’s proven success in actuator manufacturing excellence
• Controls sold separately

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Bennett BOLT912ED Electric Trim Tab Kit is designed for marine applications requiring precise trim control, particularly on transoms with limited vertical space. This 12V system includes two 9" x 12" stainless steel trim planes and two 12-volt adjustable upper hinge actuators, each with a 6-foot wire harness and waterproof connectors. The kit also provides two 20-foot wire harnesses with waterproof connectors for installation. A key feature is the adjustable upper hinge design, which allows for installation with less than 6.5 inches of vertical transom space. The tabs are constructed with piano-hinged backing plates and turn up for enhanced strength. This solution is suitable for marine professionals and boat owners seeking a robust and space-efficient trim tab system. Controls for operation are sold separately. The design incorporates a seal system based on Bennett's established actuator manufacturing experience.
