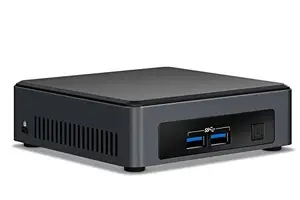

BLKNUC7I7DNK1E - Intel System NUC KIT BLKNUC7i7DNK1E Core i7-8650U Single Pack Retail

Essentials
Product Collection: Intel NUC Kit with 8th Generation Intel Core Processors
Code Name: Products formerly Dawson Canyon
Board Form Factor: UCFF (4" x 4")
Socket: Soldered-down BGA
Internal Drive Form Factor: M.2 SSD
Number of Internal Drives Supported: 1
TDP: 15 W
DC Input Voltage Supported: 12-24 VDC Supplemental Information
Embedded Options Available: Yes
Description: 8th Gen Commercial Intel NUC Memory and Storage
Max Memory Size (dependent on memory type): 32 GB
Memory Types: DDR4-2400 1.2V SO-DIMM
Max Number of Memory Channels: 2
Max Number of DIMMs: 2
ECC Memory Supported: No Processor Graphics
Integrated Graphics: Yes
Graphics Output: Dual HDMI 2.0a, 4-lane eDP 1.4
Number of Displays Supported: 2 Expansion Options
PCI Express Revision: Gen 3
PCI Express Configurations: PCIe x4: M.2 22x80 (key M) slot PCIe x1: M.2 22x30 (key E) slot
M.2 Card Slot (wireless): 22x30 (key E) slot
M.2 Card Slot (storage): 22x80 (key M) slot I/O Specifications
Number of USB Ports: 4
USB Configuration: 2x front and 2x rear USB 3.0 1x USB 3.0 and 2x USB 2.0 via internal headers
USB Revision: 2.0, 3.0
USB 2.0 Configuration (External + Internal): 0 + 2
USB 3.0 Configuration (External + Internal): 2B 2F +1
Total Number of SATA Ports: 2
Max Number of SATA 6.0 Gb/s Ports: 2
RAID Configuration: N/A
Serial Port via Internal Header: Yes
Integrated LAN: Intel i219-LM 10/100/1000 Mbps Ethernet
Integrated Wireless: Intel Wireless-AC 8265 vPro (IEEE 802.11ac 2x2)
Integrated Bluetooth: Yes
Additional Headers: Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby), HDMI_CEC, Internal 2x2 power connector Package Specifications
Low Halogen Options Available: See MDDS Advanced Technologies
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel vPro Technology : Yes
Intel ME Firmware Version: v11.8
TPM: Yes
TPM Version: 2.0
Intel Rapid Storage Technology: Yes
Intel Virtualization Technology (VT-x): Yes
Intel Platform Trust Technology (Intel PTT): No Security and Reliability
Intel AES New Instructions: Yes
Intel Trusted Execution Technology: Yes Item Dimension ( L inch x W inch x H inch)
6 x 5 x 4 Weight
1.00 lb Warranty Information
3-year limited
