B75C-0-M-BB - Airmar B75C-0-M 0d Tilt Medium CHIRP Si-Tex 8-Pin Cable

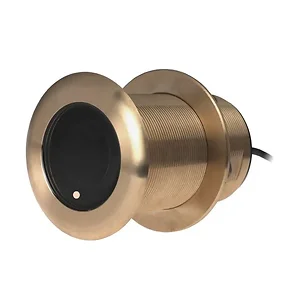

Airmar B75C 0° Tlted Element Medium CHIRP Bronze Thru Hull with Si-Tex 8-Pin Mix-N-Match Cable

• Depth & fast-response water-temperature sensor
• 600 W of power with a maximum depth of 274 m (900')
• Medium frequency: 80 to 130 kHz
• 24° to 16° beamwidth
• Medium frequency provides good shallow-water performance, bottom detail, and deeper performance than high-frequency band
• Low-profile, thru-hull housing delivers good display resolution at speed when installed properly
• Bronze housing for use in a fiberglass or wood hull
• Patented Xducer ID® technology

Airmar’s low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. Operating at a frequency range of 80 to 130 kHz, the B75M delivers up to 50 kHz of total bandwidth in just one installation. This transducer shows amazing bottom detail in shallow and medium depths down to 274 m (900').

When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer and more accurate depth readings.

• B75C-0-M-MM
• MMC-BB Cable

The Airmar B75C-0-M-BB is a bronze thru-hull transducer designed for marine applications, specifically for integration with Si-Tex 8-pin systems. It provides depth and fast-response water temperature sensing capabilities. Operating within a medium CHIRP frequency range of 80 to 130 kHz, this transducer offers a beamwidth of 24� to 16�. It is suitable for smaller vessels like center consoles, delivering good shallow-water performance, detailed bottom imaging, and effective depth readings down to a maximum of 274 meters (900 feet). The bronze housing is intended for installation in fiberglass or wood hulls, with a 0� tilted element to compensate for hull deadrise between 0� and 7�, ensuring the beam is oriented directly downwards for accurate returns. This unit utilizes patented Xducer ID� technology and provides 600 W of power.
