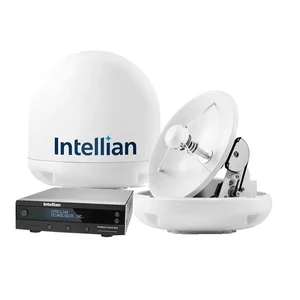

Intellian B4-309SS i3 15" Marine Satellite Antenna System

SKU: G02E4DBXX4 |  Mfg. Part: B4-309SS  | UPC: 886310026899  |  0 Reviews  |  Share Make an offer

1 Available
Condition: New

$2,866.39  $3,869.63
Need 10+? Request a volume quote
 Shipping TBD — oversized item
This item may ship by freight (LTL) truck. You can order now — we’ll quote shipping and add it to your order before it ships.
 Free pickup in Frisco, TX
Ready in 3–5 business days. Choose “Local Pickup” at checkout.

Product Overview

The Intellian i3 US System is a 2-axis stabilized marine satellite TV antenna. It features a 37 cm (14.6 inch) parabolic reflector for Ku-band satellite signals. The system includes a built-in GPS for faster signal acquisition and supports circular or linear polarization depending on the region and LNB selected. It is compatible with leading Ku-band satellite TV service providers and has a built-in HD module for Ku-band HD TV reception. The i3 is designed for boats over 8m (25ft) and has a turn rate of 60° per second.

Technical Specifications

  • Radome Height: 44 cm (17.3 inch)
  • Radome Diameter: 43 cm (16.9 inch)
  • Reflector Diameter: 37 cm (14.6 inch)
  • Weight: 9 kg (19.8 lbs)
  • Operating Temp. Range: -15°C ~ 55°C ( 5°F ~ 131°F )
  • Storage Temp. Range: -25°C ~ 70°C ( -13°F ~ 158°F )
  • Water Ingress: IPX6
  • Approvals: CE / FCC
  • Reception Frequency: Ku-band : 10.7 ~ 12.75 GHz
  • Polarization: RHCP / LHCP, Vertical / Horizontal
  • Minimum EIRP: 50 dBW
  • Azimuth Range: 680°
  • Elevation Range: 10° ~ 80°
  • Ship's Motion Roll: ±25°
  • Ship's Motion Pitch: ±15°
  • Roll & Pitch Response Rate: 60° / sec
  • Turn Rate: 60° / sec
  • RF Output: Dual Output
  • Antenna Control Unit Dimensions (W × D × H): 17.8cm × 21.7cm × 5.4 cm (7.0 inch × 8.5 inch × 2.1 inch)
  • Antenna Control Unit Weight: 1.2 kg (2.6 lbs)
  • Antenna Control Unit Display: 2 line 20 character VFD module
  • Antenna Control Unit Power Input: 9.0~30.0V DC (Typ. 30W, max 50W)
  • Antenna Control Unit Power Output: 12V DC
  • GPS Interface: Built-In (NMEA 0183 GPS)
  • WiFi: Yes

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Shipping Weight:
  • Package Size:
  • Country of Origin:
  • Category:
  • Date First Available:
  • Intellian
  • B4-309SS
  • B07CS5GX3F
  • 886310026899
  • New
  • 33.7 lbs
  • 26 x 22 x 22 in
  • KOREA, SOUTH
  • Satellite Dishes
  • April 20, 2021
