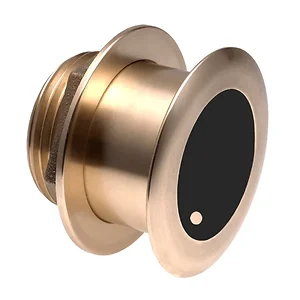

B175C-12-MW-14HB - Airmar B175C-12-MW 12d Tilt Medium CHIRP Ultra Wide With Humminbird 14-Pin MMC

Airmar B175MW Medium Ultra-Wide 12 deg Tilted Element™ Thru-Hull - Humminbird 14-Pin Mix-n-Match Cable

• Fixed 12° tilted version for 8° to 15° hull deadrise
• Depth and fast-response water-temperature sensor
• 1 kW with depth tracking down to 400 m (1,300#39;)
• Medium frequency: 60-100 kHz
• 57° to 73° beamwidth (port/starboard)
• 16° average fore/aft
• 40 kHz of total bandwidth from one transducer
• Medium frequency for superior mid-depth performance and excellent fish-target separation
• Bronze housing for use on stepped, planing or displacement hull
• Low-profile, thru-hull housing yields good resolution at speed when installed properly
• Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

• B175C-12-MW-MM Medium Ultra-Wide Chirp, 1kW, 12° Tilt
• MMC-14HB Humminbird 14-Pin Mix-n-Match Cable

The Airmar B175C-12-MW 12d Tilt Medium CHIRP Ultra Wide Thru-Hull transducer is designed for marine applications requiring depth and water temperature sensing. This 1 kW unit operates on a medium frequency band of 60-100 kHz, providing a wide beamwidth of 57-73 degrees port/starboard and 16 degrees average fore/aft. It is suitable for vessels up to 11 meters (36 feet) in length, featuring a bronze housing for fiberglass or wood hulls. The fixed 12-degree tilted element design accommodates hull deadrises between 8 and 15 degrees, ensuring optimal performance. With a maximum depth tracking capability of 400 meters (1,300 feet), this transducer is intended for IT professionals and marine electronics integrators seeking reliable mid-depth performance and enhanced fish-target separation, particularly for pelagic species in the upper water column. The B175C-12-MW-14HB includes a Humminbird 14-Pin Mix-n-Match Cable for connectivity.
