B175C-0-MW-14HB - Airmar B175C-0-MW 0d Tilt Medium CHIRP Ultra Wide with Humminbird 14-Pin MMC

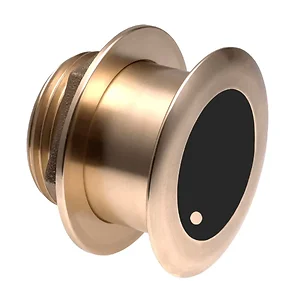

Airmar B175MW Medium Ultra-Wide 0 deg Tilted Element™ Thru-Hull - with Humminbird 14-Pin Mix-n-Match Cable

• Fixed 0° tilted version for 0° to 7° hull deadrise
• Depth and fast-response water-temperature sensor
• 1 kW with depth tracking down to 400 m (1,300#39;)
• Medium frequency: 60-100 kHz
• 57° to 73° beamwidth (port/starboard)
• 16° average fore/aft
• 40 kHz of total bandwidth from one transducer
• Medium frequency for superior mid-depth performance and excellent fish-target separation
• Bronze housing for use on stepped, planing or displacement hull
• Low-profile, thru-hull housing yields good resolution at speed when installed properly
• Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

• MMC-14HB 14-Pin Humminbird Mix-n-Match Cable
• B175C-0-MW-MM 0d Tilt Medium CHIRP Ultra Wide

The Airmar B175C-0-MW-14HB is a 1 kW thru-hull transducer designed for marine applications, providing depth and fast-response water temperature data. This model features a fixed 0� tilted element, suitable for hulls with a deadrise between 0� and 7�. It operates within a medium frequency range of 60-100 kHz, offering 40 kHz of total bandwidth. The transducer delivers an ultra-wide beamwidth of 57� to 73� port/starboard and 16� average fore/aft, which can enhance target separation in the mid-depth water column. With a maximum depth tracking capability of 400 meters (1,300 feet), this unit is intended for vessels up to 11 meters (36 feet) in length. Its bronze housing is compatible with fiberglass or wood hulls, and it includes a 9-meter (30-foot) Mix-n-Match cable with a 14-pin Humminbird connector. This transducer is suitable for IT buyers supporting marine operations requiring reliable sonar data for navigation and fish finding.
