14 Available / 2 Sold
Condition: New
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.

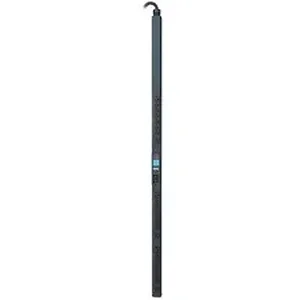

The APC AP8962 Switched Rack Power Distribution Unit (PDU) is a vertical (0U) distribution unit designed for IT environments requiring precise power management. This PDU provides advanced, user-customizable power control and active monitoring capabilities. It is suitable for businesses that need to remotely manage power to connected equipment, offering features like individual outlet power on/off for remote reboots and restricting unauthorized use. The unit helps prevent circuit overloads during power recovery through power sequencing delays and load shedding prioritization, extending the uptime of critical equipment. Real-time remote monitoring of connected loads is available via current metering, with user-defined alarms to warn of potential circuit overloads. Access, configuration, and control are facilitated through secure Web, SNMP, or Telnet interfaces, and it integrates with APC Centralized Management platforms.
Output
Nominal Output Voltage:120V
Maximum Total Current Draw per Phase:16A
Output Connections:(24) NEMA 5-20R Input
Nominal Input Voltage:208V 3PH
Input Frequency:50/60 Hz
Regulatory Derated Input Current (North America):16A
Input Connections:NEMA L21-20P Cord Length:1.83 meters
Number of Power Cords:1
Maximum Input Current per phase:20A
Load Capacity:5760 VA Color
Black
Conformance
Regulatory Approvals:cUL Listed, FCC Part 15 Class A, ICES-003, UL 60950-1, UL Listed Sustainable Offer Status
RoHS:Compliant
REACH:REACH: Contains No SVHCs
Battery Directive:Compliant
Battery Notes:Contains Lithium Coin Cell
Other Environmental Compliance:China RoHS Item Dimension (L"xW"xH"):
4.26 x 6.48 x 78.98
Weight:
20.9 lb
Warranty Information:
2 years repair or replace
The PDU has a nominal output voltage of 120V with (24) NEMA 5-20R output connections. Its nominal input voltage is 208V 3PH, utilizing a NEMA L21-20P input connection.
The PDU includes one 1.83-meter power cord. It also features locking IEC receptacles, low-profile circuit breakers, and a port for a temperature/humidity sensor.
Switched Rack PDUs are designed for IT professionals who need remote power control at the outlet level. This includes remotely rebooting hung equipment, power cycling devices, and implementing power sequencing to manage load during power recovery or startup, thus preventing circuit overloads.
The PDU has a load capacity of 5760 VA. It supports a maximum total current draw per phase of 16A on the output side and a maximum input current per phase of 20A, with a regulatory derated input current of 16A in North America.
AP8962 - Apc - Schneider Electric SCHNEIDER ELECTRIC AP8962 - POWER DISTRIBUTION UNIT - VERTICAL (0U) - BLACK - IN
