2 Available
Condition: New

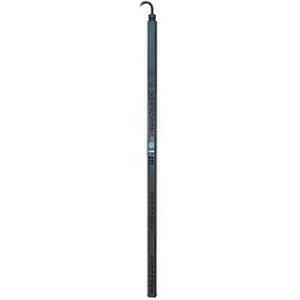

The APC by Schneider Electric Metered Rack PDU (AP8863) is a zero-U power distribution unit designed for IT environments requiring active power metering and circuit protection. This PDU provides real-time local and remote alerts for potential circuit overloads via user-defined alarm thresholds. It enables data center managers to monitor power utilization, aiding in load balancing and right-sizing IT infrastructure to optimize energy consumption. The unit features a NEMA L21-20P input plug and offers 24 NEMA 5-20R and 6 NEMA L6-20R output receptacles. It supports input voltage ranging from 120V AC to 230V AC, with an output of 120V AC or 208V AC, and a 20A input current. Management is accessible through secure Web, SNMP, or Telnet interfaces. The PDU includes a temperature/humidity sensor port, locking IEC receptacles, and ultra-low profile circuit breakers, making it suitable for rack-mountable or tower installations.
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Users can access and configure the Metered Rack PDU through secure Web, SNMP, or Telnet interfaces. It is also compatible with APC Centralized Management platforms like InfraStruxure Central.
The active metering provides power utilization data, enabling energy optimization and circuit protection. This data helps IT managers make informed decisions for load balancing and right-sizing IT environments, which can lower total cost of ownership.
The PDU measures 72 inches in height, 2.2 inches in width, and 1.7 inches in depth, with an approximate weight of 14.48 lbs. It can be mounted in either a horizontal or vertical orientation, supporting both rack-mountable (0U rack height) and tower form factors.
AP8863 - Apc - Schneider Electric RACK PDU 2G, METERED, ZEROU, 20A, 208V 3PH, (24) 5-20R (6) L6-20R
