AP8958NA3 - Apc - Schneider Electric SCHNEIDER ELECTRIC | Aztek Computers
29+Years

Received! Our sales team will contact you soon.

SKU: HP5C7NVCY7 |  Mfg. Part: AP8958NA3  | UPC: 731304277125  |  0 Reviews  |     Share Make an offer

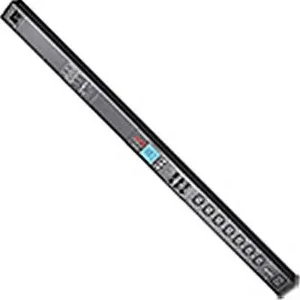

AP8958NA3 - Apc - Schneider Electric SCHNEIDER ELECTRIC AP8958NA3 - POWER DISTRIBUTION UNIT - VERTICAL (0U) - BLACK -

Special Order
Ships in 1-2 weeks
Condition: New

$1,320.35
$1,320.35

AUTHORIZED
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

RACK PDU 2G SWITCHED ZEROU 20A 208V L620

Expert Overview

The APC - Schneider Electric AP8958NA3 is a vertical (0U) power distribution unit designed for rack environments. This switched PDU provides power distribution and monitoring capabilities for IT equipment within a data center or server room. It is suitable for organizations requiring precise power control and management at the outlet level. The unit accepts input voltages of 200V, 208V, or 230V via a NEMA L6-20P input connection and distributes power through seven IEC 320 C13 outlets and one IEC 320 C19 outlet. With a maximum total current draw of 16A per phase, it supports essential rack-mounted devices. This PDU addresses the need for efficient power delivery and remote power cycling of individual outlets, contributing to improved uptime and operational efficiency for IT infrastructure.

Technical Specifications

Output
Nominal Output Voltage :200V, 208V, 230V
Maximum Total Current Draw per Phase :16A

Output Connections :
(7) IEC 320 C13
(1) IEC 320 C19

Overload Protection :No Input
Nominal Input Voltage :200V, 208V, 230V
Input Frequency :50/60 Hz
Regulatory Derated Input Current (North America) :16A
Input Connections :NEMA L6-20P
Cord Length :9.84 feet (3 meters)
Number of Power Cords :1
Acceptable Input Voltage :200-240 VAC
Maximum Input Current per phase :20A Conformance
Regulatory Approvals :cUL Listed, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, PSE, UL Listed, VCCI Class A, VDE Sustainable Offer Status
RoHS :Compliant
REACH :REACH: Contains No SVHCs
PEP :Available in Documentation tab
EOLI :Available in Documentation tab
Battery Directive :Compliant
Battery Notes :Contains Lithium Coin Cell Item Dimension (L"xW"xH"):
4.50 x 6.50 x 44.30

Weight:
12.1 lb

Warranty Information:
2 years repair or replace

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • TAA Compliant:
  • Country of Origin:
  • Available on GSA:
  • APC - Schneider Electric
  • AP8958NA3
  • B004DZVFWU
  • 731304277125
  • New
  • 11.76 lbs
  • 45 X 4 X 7
  • Aug 30, 2026
  • Nov 15, 2010
  • Yes
  • United States
  • Yes
Product Identifiers: Brand: Apc - Schneider Electric • Part #: AP8958NA3 • UPC: 731304277125 • ASIN: B004DZVFWU • Category: Distribution Unit • TAA Compliant

Frequently Asked Questions

What input power connection does this PDU use?

The PDU utilizes a NEMA L6-20P input connection, suitable for 200V, 208V, or 230V nominal input voltage. It comes with a single 9.84-foot (3-meter) power cord.

What types of output connections are available?

The unit provides seven IEC 320 C13 outlets and one IEC 320 C19 outlet. These are standard connections for various IT equipment within a rack.

Does this PDU include overload protection?

No, the specifications explicitly state that this power distribution unit does not include overload protection.

What is the maximum current draw per phase for this unit?

The maximum total current draw per phase for this PDU is 16A. The maximum input current per phase is 20A.
