Power distribution strip (rack-mountable) - AC 208 V - 3-phase - RS-232 - input: NEMA L21-20 - output connectors: 48 - black - for P/N: AR3100

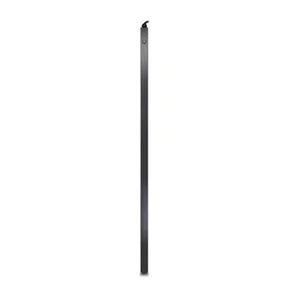

The APC AP8861 is a rack-mountable power distribution unit (PDU) designed for data center and IT environments requiring robust power management. This 0U PDU accepts a 208V 3-phase input via a NEMA L21-20P connection, distributing power across 48 output connectors. It provides a mix of (36) IEC 320 C13, (6) IEC 320 C19, and (2) NEMA 5-20R outlets, supporting a variety of IT equipment. The unit facilitates remote management through an RS-232 interface, allowing for monitoring and control of power distribution. With a 1.83-meter cord and a black finish, it integrates into standard rack setups. This PDU is suitable for organizations needing to efficiently power and manage a high density of rack-mounted devices, ensuring reliable power delivery and system uptime. It is specifically compatible with P/N: AR3100.
Output
Nominal Output Voltage:120V, 208V
Output Connections:
(36) IEC 320 C13
(6) IEC 320 C19
(2) NEMA 5-20R Input
Nominal Input Voltage:208V 3PH
Input Frequency:50/60 Hz
Input Connections:NEMA L21-20P
Cord Length
1.83 meters
Color
Black Conformance
Regulatory Approvals:CSA C22.2 No. 60950, UL 60950-1
Sustainable Offer Status
RoHS:Compliant
REACH:REACH: Contains No SVHCs
Battery Directive:Compliant
Battery Notes:Contains Lithium Coin Cell Item Dimension (L"xW"xH"):
4.20 x 6.38 x 78.75
Weight:
17.54lb
Warranty Information:
2 years repair or replace
The AP8861 requires a NEMA L21-20P input connection, supporting a nominal input voltage of 208V 3-phase at 50/60 Hz.
The PDU offers a total of 48 output connections, including (36) IEC 320 C13, (6) IEC 320 C19, and (2) NEMA 5-20R outlets.
Yes, the AP8861 power distribution unit is specified as compatible with P/N: AR3100.
This power distribution unit is rack-mountable in a 0U form factor. It is black in color and weighs 17.54 lbs.
