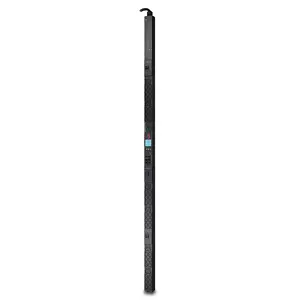

AP8865 - Apc - Schneider Electric NEW APC PDU METERED 0U 30A 208V (36) C13 & (6) C19 & (2) 5-20R

The APC Metered Zero U Rack Power Distribution Unit (PDU) is designed to optimize energy use and offer enhanced circuit protection for data centers. With real-time local and remote alerts for potential circuit overloads, it empowers Data Center Managers to efficiently balance loads and manage IT environments. This PDU features true power monitoring, a port for temperature and humidity sensors, and secure access through Web, SNMP, or Telnet interfaces, complemented by APC's Centralized Management solutions for energy efficiency.

• Main Input Voltage: 208 V 3 phase
• PDU Type: Metered
• Main Output Voltage: 120 V; 208 V
• Input Connection Type: NEMA L21-30P
• Number of rack units: 0U
• Cable Length: 6 ft (1.83 m)
• Provided Equipment: Installation guide; Rack Mounting brackets; Serial configuration cable; Safety guide
• Color: Black
• Height: 70.51 in (179.1 cm)
• Width: 2.20 in (5.6 cm)
• Depth: 1.81 in (4.6 cm)
• Net Weight: 16.67 lb (7.56 kg)
• Mounting Location: Side
• Mounting Mode: Rack-mounted
• Line Rated Current: 24 A
• Max Line Current: 30 A
• Load Capacity: 8600 VA
• Input Frequency: 50/60 Hz
• Number of Outlets: 2 NEMA 5-20R; 36 IEC 60320 C13; 6 IEC 60320 C19
• Operating Temperature: 23°F (-5°C) to 140°F (60°C)
• Storage Temperature: -13°F (-25°C) to 149°F (65°C)
• Warranty: 2 years repair or replace

The APC Metered Zero U Rack Power Distribution Unit (PDU), part number AP8865, is designed for data center environments requiring efficient power distribution and monitoring. This PDU provides real-time local and remote alerts to help prevent circuit overloads, enabling Data Center Managers to balance loads effectively. It features true power monitoring capabilities and supports a port for optional temperature and humidity sensors, contributing to environmental awareness within the IT infrastructure. Secure access for configuration and monitoring is available via Web, SNMP, or Telnet interfaces, and it integrates with APC's Centralized Management solutions for enhanced energy efficiency. With a 0U rack-mounted design, it conserves valuable rack space while offering 36 IEC 60320 C13, 6 IEC 60320 C19, and 2 NEMA 5-20R outlets. The unit operates with a 208V 3-phase input via a NEMA L21-30P connection, supplying 120V and 208V outputs with a 24A line rated current and 8600 VA load capacity. It is suitable for organizations focused on optimizing energy use and enhancing circuit protection within their IT setups.
