Power distribution unit (rack-mountable) - AC 200/208/230 V - Ethernet - input: NEMA L6-30 - output connectors: 16 - 2U

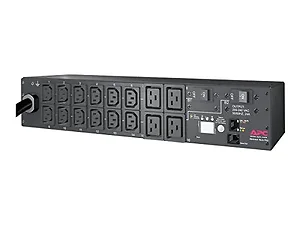

The APC PDU Metered 2U is a rack-mountable power distribution unit designed for IT environments requiring reliable power delivery and monitoring. This unit, part number AP7811B, provides 208V nominal output and accepts 200V, 208V, or 230V input via a NEMA L6-30P connection. It features 16 output connectors, specifically 12 IEC 320 C13 and 4 IEC 320 C19, all with battery backup capability. With a 2U rack height, it integrates into standard rack setups. The PDU includes overload protection and supports a maximum total current draw of 24A. An Ethernet port allows for network connectivity, which is suitable for environments needing remote power management and status updates. This device is intended for IT professionals and data center operators who need to distribute power efficiently to multiple devices within a rack while maintaining visibility over power consumption.
Output
Nominal Output Voltage: 208V
Overload Protection: Yes
Maximum Total Current Draw: 24
Output Connections:
(12) IEC 320 C13 (Battery Backup)
(4) IEC 320 C19 (Battery Backup)
Input
Nominal Input Voltage: 200V , 208V , 230
VInput frequency: 50/60 Hz
Input Connections: NEMA L6-30P
Cord Length: 12ft ( 3.66meters )
Number of Power Cords: 1
Maximum Input Current: 30A
Regulatory Derated Input Current (North America): 24A
Physical
Rack Height: 2U
Environmental
Operating Temperature: 23 - 113 oF ( -5 - 45 oC )
Operating Relative Humidity: 5 - 95 %
Operating Elevation: 0-10000ft ( 0-3000meters )
Storage Temperature: -25 - 65 oC
Storage Relative Humidity: 5 - 95 %
Storage Elevation 0-50000ft ( 0-15000meters )
Conformance
Approvals: cUL Listed, CSA, FCC Part 15 Class A, ICES-003, PSE, UL 60950, UL Listed
Sustainable Offer Status
RoHS: Compliant
REACH: Contains No SVHCs
Battery Directive Compliant
Item Dimension (L inchxW inchxH inch)
15 x 20 x 6
Weight
13.00lb
Warranty Information
2 years repair or replace
This power distribution unit occupies 2U of rack space. Its physical dimensions are 15 inches (L) x 20 inches (W) x 6 inches (H).
Yes, the APC PDU Metered 2U is equipped with overload protection to safeguard connected equipment.
The product comes with a 2-year repair or replace warranty from the vendor.
AP7811B - Apc - Schneider Electric APC PDU METERED 2U 30A 208V (12) C13&(4) C19 NEW 1 YEAR VENDOR WARRANTY
