AP8659 - Apc - Schneider Electric SCHNEIDER ELECTRIC AP8659 - POWER DISTRIBUTION UNIT - VERTICAL (0U) - BLACK - IN

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.

• Main Input Voltage: 200 V; 208 V; 230 V
• PDU Type: Switched metered outlet
• Main Output Voltage: 100 V; 200 V; 208 V; 230 V
• Input Connection Type: IEC 60320 C20
• Number of rack unit: 0U
• Provided Equipment: CAN Port Terminator; Installation guide; Rack Mounting brackets; Safety guide; Serial configuration cable
• Color: Black
• Height: 72.01 in (182.9 cm)
• Width: 2.20 in (5.6 cm)
• Depth: 2.01 in (5.1 cm)
• Net Weight: 13.43 lb(US) (6.09 kg)
• Mounting Location: Side
• Mounting preference: No preference
• Mounting Mode: Not rack-mountable
• Line Rated Current: 16 A
• Acceptable Input Voltage: 100r240 V
• Input current limits: 20 A
• Load Capacity: 3300 VA
• Input Frequency: 50/60 Hz
• Number of power socket outlets: 21 IEC 60320 C13; 3 IEC 60320 C19
• Product Certifications: PSE; UL Listed; VCCI Class A; VDE
• Standards: EN 55022 Class A; EN 55024; EN 61000-3-2; EN 61000-3-3; FCC Part 15 class A; ICES-003
• Ambient Air Temperature for Operation: 23r140 rF (-5r60 rC)
• Relative Humidity: 5r95 %
• Operating altitude: 0...10000 ft
• Ambient Air Temperature for Storage: -13r149 rF (-25r65 rC)
• Storage Relative Humidity: 5r95 %
• Storage altitude: 0r50000 ft (0.00r15240.00 m)
• GTIN: 731304299509
• Unit Type of Package 1: PCE
• Number of Units in Package 1: 1
• Package 1 Height: 80.24 in (203.8 cm)
• Package 1 Width: 6.38 in (16.2 cm)
• Package 1 Length: 4.61 in (11.7 cm)
• Package 1 Weight: 18.39 lb(US) (8.342 kg)
• Warranty: 2 years repair or replace

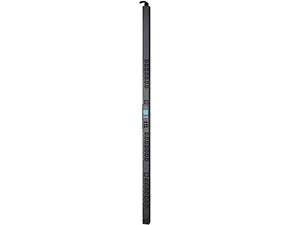

The APC AP8659 is a vertical 0U Switched Metered Outlet Rack Power Distribution Unit (PDU) designed for IT environments requiring precise power control and monitoring. This PDU enables individual outlet power metering and remote on/off control, facilitating power cycling for equipment reboots and preventing unauthorized outlet use. It supports power sequencing to manage equipment startup/shutdown order, helping to avoid circuit overloads during power recovery and extend critical equipment uptime. Real-time current metering provides remote load monitoring, while user-defined alarms warn of potential circuit overloads. The unit features 21 IEC 60320 C13 and 3 IEC 60320 C19 outlets, with an IEC 60320 C20 input connection. It operates with main input voltages of 200V, 208V, or 230V, and offers output voltages of 100V, 200V, 208V, or 230V. Management is available via secure Web, SNMP, or Telnet interfaces.
