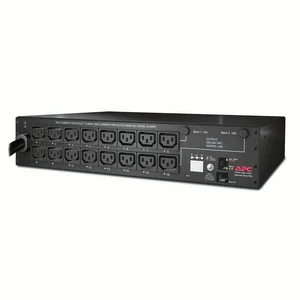

The APC Switched Rack Power Distribution Unit (PDU) is designed for IT environments requiring precise power management. This 2U unit, part number AP7911B, provides sixteen IEC 320 C13 outlets, operating at a nominal output voltage of 208V. It supports a maximum total current draw of 30A. The PDU integrates advanced load monitoring with remote on/off switching capabilities for individual outlets, enabling power cycling of connected equipment. Input power is supplied via a NEMA L6-30P connection with a 3.66-meter cord, accepting input voltages between 200-240VAC at 50/60 Hz. This unit is suitable for businesses that need to manage power to rack-mounted servers, networking devices, or other IT hardware, offering control over power distribution and facilitating remote troubleshooting or energy management.
The PDU uses a NEMA L6-30P input connection. It comes with a single 3.66-meter power cord.
This PDU provides sixteen IEC 320 C13 output connections. These outlets deliver a nominal output voltage of 208V.
The unit occupies 2U of rack space. Its maximum physical dimensions are 89mm (3.5 inches) in height, 444mm (17.5 inches) in width, and 254mm (10 inches) in depth.
The PDU has a maximum total current draw of 30A. For North America, the regulatory derated input current is 24A.
AP7911B - Apc - Schneider Electric NEW APC PDU SWITCHED 2U 30A 208V (16) C13
