Condition: New

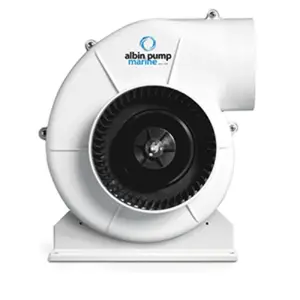

Air Blower 750 Flex - 12V
6″ flex mounted marine ventilation 12V radial blower with capacity 750 m3 per h, 441 CFM. Inlet 150mm, outlet 103mm.
Body in hermoplastic PA6 high durable white Nylon with integrated blower motor. 10A fuse.
Interchangeable with Johnson Pump 80-47421-01.
Features:
The Albin Pump Marine Air Blower 750 Flex - 12V is a radial blower designed for marine ventilation applications. This 6-inch flex-mounted unit operates on a 12V electrical system, providing a capacity of 750 m3 per hour (441 CFM). It features a thermoplastic PA6 high-durable white Nylon body with an integrated blower motor, and requires a 10A fuse for operation. With an inlet of 150mm and an outlet of 103mm, this blower is suitable for maintaining air circulation in marine environments. It is interchangeable with the Johnson Pump 80-47421-01, offering a direct replacement option. The unit, part number 10-03-009, is CE marked and certified to ISO 9097:1991 (Marine electrical fans), ISO 8846:1990 (ignition protection), ISO 10133:2000 (electrical systems), and EN55014-1:2006 (2004/108EC), addressing common ventilation needs in small craft.
The blower measures 290mm (11.4 inches) in length, 257mm (10.12 inches) in height, and 170mm (6.69 inches) in width. It has a weight of 2.8 kg (5 lbs).
The blower is CE marked and certified to several marine standards, including ISO 9097:1991 for small craft electrical fans, ISO 8846:1990 for ignition protection, and ISO 10133:2000 for electrical systems. It also meets EN55014-1:2006 (2004/108EC).
Yes, this Albin Pump Marine Air Blower is designed to be interchangeable with the Johnson Pump 80-47421-01, allowing for direct replacement in compatible systems.
The blower has an inlet diameter of 150mm and an outlet diameter of 103mm, suitable for connecting to appropriate ventilation ducts.
10-03-009 - Albin Pump Marine Air Blower 750 Flex - 12V
