13-01-003 - Albin Pump Marine 12V DC Circulation Pump with Brushless Motor - BL90CM

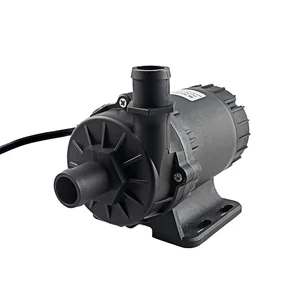

12V DC Circulation Pump with Brushless Motor - BL90CM

This high-efficiency circulation pump is specifically designed for circulating water or antifreeze in heating and cooling systems on various applications such as boats, buses, motor homes, and commercial vehicles. Noted for its compact size, this pump ensures maintenance-free operation thanks to its robust construction, which includes a ceramic shaft and carbon fiber sleeve. It is completely waterproof (IP68 rated) and features brushless DC control for extended service life.

Key Benefits:

• Brushless magnetic isolated motor design
• Designed for continuous duty operation
• Long lifespan of up to 20,000 hours
• Robust construction with ABS and PES/SPS7PA66 materials
• IP68 waterproof rating
• Quiet operation with a noise level of only 35dB
• Maximum liquid temperature: 80°C for continuous use, 100°C for intermittent use

Specifications:

• Port size: 3/4" (20mm)
• Weight: 0.89 kg
• Capacity at 0.1 bar: 51 l/min
• Capacity at 0.25 bar: 47 l/min
• Maximum load: 6.6 A
• Maximum power consumption: 80 W

*Includes pump and motor

The Albin Pump Marine 12V DC Circulation Pump (part number 13-01-003) is engineered for circulating water or antifreeze in heating and cooling systems. This unit is suitable for integration into various applications, including boats, buses, motor homes, and commercial vehicles. It features a brushless motor with magnetic isolation, contributing to a service life of up to 20,000 hours and enabling continuous duty operation. The pump's robust construction, utilizing ABS and PES/SPS7PA66 materials, along with a ceramic shaft and carbon fiber sleeve, supports maintenance-free operation. With an IP68 waterproof rating, it is designed for environments where water exposure is a factor. Its compact size and quiet operation (35dB) facilitate versatile installation without significant noise impact. The pump handles liquid temperatures up to 80�C for continuous use and 100�C for intermittent use, making it appropriate for specific thermal management requirements.
