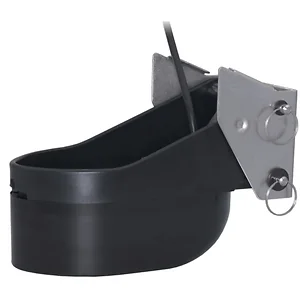

Raymarine TM185MW 1Kw Depth and Temperature CHIRP Transom Mount
Model: A80803AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready TM185 Medium Ultra-Wide (MW) Transom Mount transducer. The TM185MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column. Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60?100 kHz.
The TM185MW Transom Mount is a 1 kW transducer housed in one of AIRMAR’s most popular housings. Transom models are best suited for small and trailered vessels where a thruhull installation is not practical. Simple to install and ideal for small trailered vessels where a thru-hull may interfere with loading.
Specifications| Power Rating | 1 kW |
| Transom Angle | 2° to 22° |
| Functions | Depth, Temperature |
| Acoustic Window | Urethane |
| Cable-Length | 9 m (30') |
| Common Use | Leisure/Yachting, Fishing |
| Country of Origin | USA |
| Freq Med Wide | 60-100 kHz |
| Housing | Urethane/Stainless Bracket |
| Hull Material | Compatible w/ all hull materials |
| Max Depth | 400 m (1300') |
| Medium Frequency | 60-100 kHz |
| Medium-Wide Beamwidth | 57° to 73° beam p/s 16° average f/a |
| Mounting Style | Transom |
| Power Rating | 1 kW |
| Retractable housing | No |
| Single or Dual Frequency | CHIRP-Ready Single-Band |
| Tilted Element | No |
| Weight | 4.2 kg (9.2 lb.) |
The Raymarine TM185MW 1Kw Depth and Temperature CHIRP Transom Mount transducer, part number A80803, is designed for marine applications requiring depth and fast-response water temperature sensing. This 1 kW transducer offers depth tracking down to 400 meters (1,300 feet) and operates on a medium frequency range of 60-100 kHz. It provides a wide beamwidth of 57-73 degrees port/starboard and 16 degrees average fore/aft, suitable for comprehensive coverage under the vessel. The TM185MW is a transom-mount unit, simplifying installation for small and trailered vessels where a thru-hull setup may not be practical. It maintains performance at boat speeds below 30 knots and is compatible with all hull materials. This transducer is suitable for both leisure/yachting and fishing, particularly for targeting pelagic species in the upper water column or deeper species within its frequency band.
The TM185MW is commonly used for leisure/yachting and fishing. Its medium frequency and ultra-wide beamwidth are beneficial for anglers targeting pelagic species in the upper water column or seeking deeper species.
This transducer provides both depth tracking and fast-response water temperature sensing. It can track depth down to 400 meters (1,300 feet).
The transducer features a medium-wide beamwidth of 57 to 73 degrees port/starboard and an average of 16 degrees fore/aft, operating within the 60-100 kHz frequency range.
The transom-mount design is best suited for small and trailered vessels where a thru-hull installation might be impractical or interfere with loading. It is compatible with all hull materials.
