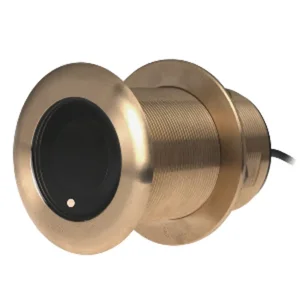

A80036 - Raymarine B75M 600W Medium Frequency CHIRP Transducer 20° Tilt Single Operation Cable f/1 Transducer Install

B75M 600W Medium Frequency CHIRP Transducer 20° Tilt Single Operation Cable for 1 Transducer Install

The B75's offer high resolution benefits of CHIRP technology at an affordable price. Available in a number of low-profile, tilted element configurations these transducers are great options for small and medium sized trailerable boats. They also offer wider beam angles than some more expensive transducers, providing greater coverage below the vessel.

Specifications:

• Beam: 24 to 16 Degrees Medium-Frequency
• Deadrise Angle: 16 to 24 Degree
• Frequency: 80-130 kHz Medium Frequency CHIRP
• Material: Bronze
• Maximum Depth: 900'
• Sonar: CHIRP Sonar, Depth and Temperature
• Type: Thru-Hull

The Raymarine B75M 600W Medium Frequency CHIRP Transducer is a thru-hull sonar device designed for small to medium-sized trailerable boats. It provides depth and temperature data using CHIRP sonar technology, operating within a medium frequency range of 80-130 kHz. This transducer offers a beam angle varying from 24 to 16 degrees, which contributes to broader coverage beneath the vessel compared to some other transducers. Its 20-degree tilt is suitable for boats with a deadrise angle between 16 and 24 degrees, facilitating a single transducer installation. Constructed from bronze, this unit is rated for a maximum depth of 900 feet. The A80036 is intended for marine professionals and recreational users seeking high-resolution sonar capabilities for navigation and fish-finding applications.
