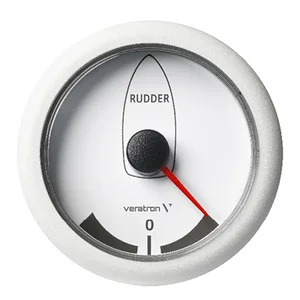

A2C59512411 - Veratron ViewLine 3-3/8" Rudder Angle Indicator - 45�/+45�

ViewLine 3-3/8" Rudder Angle Indicator - 45�/+45�

Designed for wheel-controlled yachts and pleasure boats, the ViewLine Rudder Angle Indicator provides a clear display of the current rudder position, facilitating easier navigation when exiting harbors and passing through locks.

Note: Only rudder instruments of the same diameter should be combined.

Specifications:

• 8 and 14 pole Tyco/Hirschmann bush housing
• Operating voltage: 8 � 32 V
• Accuracy: +/- 2.5% of full-scale reading
• Anti-fog double lens
• Protection rating front: IP67, rear: IP52
• Installation diameter: 85 mm
• Installation depth: 50 mm
• Operating temperature range: -20 �C to +70 �C
• Reverse polarity protection
