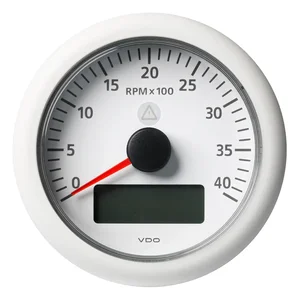

Veratron A2C59512397 85MM ViewLine Tachometer - 0 to 4000 RPM - White Dial

85MM ViewLine Tachometer with Multi-Function Display - 0 to 4000 RPM - White Dial

The ViewLine Tachometer features an easy-to-read display and is designed for straightforward connection to conventional marine engines. This model includes a digital operating hours counter and a single integrated LED warning light.

Key Specifications:

• Compatible with various sensor types (W, Ind, Hall, Generator)
• Optional acoustic alert output
• LCD Display Size: 37 mm x 11 mm
• Operating Voltage: 8 – 32 V
• Accuracy: ± 2.5 % of full scale reading
• Current Consumption: < 175 mA (with standard LED warning light)
• Programmable pulse count via dip switch or PC software
• Anti-fog double lens design
• Front Protection Rating: IP67, Rear: IP52
• Installation Diameter: 85 mm
• Installation Depth: 50 mm
• Operating Temperature Range: -20 °C to +70 °C
• Reverse Polarity Protection

Please note: This product may not be returned to the original point of purchase. For any issues or concerns, please contact the manufacturer directly.
