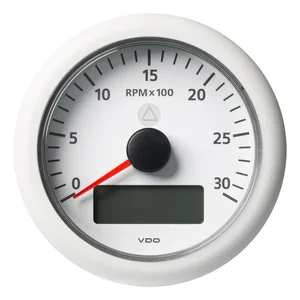

Veratron A2C59512396 ViewLine 3/8" Tachometer - 0 to 3000 RPM - White Dial

ViewLine 3-3/8" (85MM) Tachometer - 0 to 3000 RPM - White Dial

This tachometer features a multifunction display and can monitoring conventional marine engines without the need for a data bus. An integrated LED warning light comes standard, ensuring you stay informed about engine performance.

Key Specifications:

• Supports various sensor inputs (W, Ind, Hall, Generator)
• Optional output for acoustic alerts
• LCD display size: 37 mm x 11 mm
• Compatible with 8 and 14 pole Tyco / Hirschmann connectors
• Operating voltage range: 8 – 32 V
• Accuracy: +/- 2.5% of full scale
• Current consumption under 175 mA with standard LED warning light
• Programmable pulse count via dip switch or PC software (ViewLine programming tool)
• Includes anti-fog double lens
• IP67 front protection, IP52 rear protection
• Installation diameter: 85 mm
• Installation depth: 50 mm
• Operating temperature range: -20°C to +70°C
• Features reverse polarity protection

Please note: This product cannot be returned to the original point of purchase. For issues or concerns, contact the manufacturer directly.
