Arco Marine A275L-12-DF315-EX-49K6 High Output Zeus A275L J-180 12V Alternator 3.15"

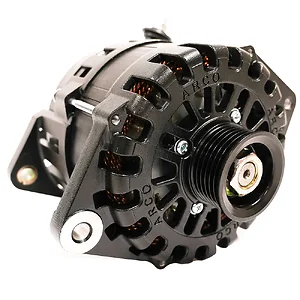

High Output Zeus A275L J-180 12V Alternator with Terminal Block

This powerful alternator is designed for optimal performance in its size class, delivering exceptional charge capabilities.

Applications:

• Marine, RV, Military, and Commercial uses.

Key Features:

• Engineered for high energy output.
• Fast charging for large battery banks.
• Operating temperatures 8 - 20% cooler than standard alternators.
• Includes heat shedding coatings and dual cooling fans for optimal performance.
• Optimized for idle performance, reducing the need for a generator.
• Supports peak performance with E-Coat/Cerakote technology.
• SAE J1171 certified and proudly made in the U.S.A.

Specifications:

• Voltage: 12V
• Field Type: P
• Rotor Poles: 16
• Weight: 14.9 lbs / 6.7 kg
• Output Voltage: 14.1V (Default)
• Max Output: 311 Amps (Cold, 9,000 RPM)
• Sustained Output: 227 Amps (Hot, 6,000 RPM)
