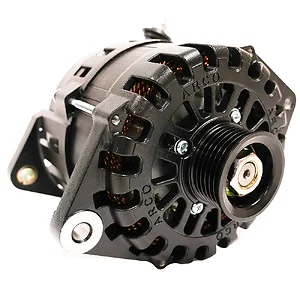

Arco Marine A275L-12-N62-IE-50K6CP Zeus A275L High Output Alternator

1 Available
Condition: New

$764.69  $1,032.33
Free Shipping for this Item

Product Overview

ARCO Marine Zeus A275L High Output Alternator

The Zeus A275L is the highest power output alternator in its class, engineered for maximum energy production and efficiency.

Key Features:

  • Optimized for marine, RV, military, and commercial applications.
  • Effectively charges large battery banks rapidly.
  • Operates at cooler temperatures, enhancing performance by running 8-20% cooler than traditional alternators due to:
  •    - Heat shedding coatings
  •    - External rectifier location
  •    - Dual cooling fans
  •    - OEM Components
  • Maximizes performance at idle speeds, reducing the need for an additional generator.
  • Utilizes E-Coat/Cerakote for improved cooling and sustained amperage output.
  • Compatible with ARCO Zeus Bluetooth alternator regulator for optimal performance.
  • SAE J1171 Certified for reliability.
  • Manufactured in the U.S.A.

Technical Specifications

  • Voltage: 12v
  • Field Type: P
  • Rotor Poles: 16
  • Stator Size: 138mm
  • Frame Size: Large
  • Weight: 14.9 lbs (6.7 kg)
  • Regulation: Internal/External (with adaptor for optional external regulation)
  • Output Voltage: 14.1v (Default)
  • Finish: Black Cerakote or E-coating
  • Cut-In RPM: 1,061 Alternator RPM
  • Maximum Alt RPM: 19,000
  • Battery Post: M8 Thread Post, Side Mount
  • Standard Pulley: 49K6 (6-groove, 49mm)
  • Pulley Mount: 17mm diameter shaft, 25mm long, M17 x 1.5 thread
  • Pulley Hardware: Includes M17 x 1.5 x 24mm nut and washer (18mm ID x 29mm OD)
  • Diodes: 6 positive, 6 negative, 50A Rated, Avalanche
  • Max Output (Cold, 9,000 RPM): 311 Amps
  • Sustained Cruising Output (Hot, 6,000 RPM): 227 Amps
  • Sustained Idle Output (Hot, 3,000 RPM): 198 Amps
  • Max Continuous Operating Temperature: 110°C / 230°F
  • Mounting Applications: Compatible with 1999-2006 Mercedes Sprinter and 2007-Up dual alternator setups.

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • ARCO Marine
  • A275L-12-N62-IE-50K6CP
  • B0D7RP3B8H
  • 659859486475
  • New
  • 16.5 lbs
  • 11 X 10 X 10
  • Feb 21, 2026
  • Jun 11, 2024
Product Identifiers: Brand: Arco Marine • Part #: A275L-12-N62-IE-50K6CP • UPC: 659859486475 • ASIN: B0D7RP3B8H
