SKU: EBZM0RFRMS |  Mfg. Part: 89-206-KT2172  | UPC: 881038042442  |
 1 Reviews  |     Share

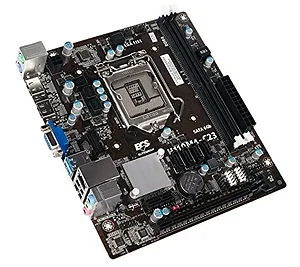

Elite Group 89-206-KT2172 ECS H110M4-C23 mATX LGA1151 Motherboard

Out of Stock
Condition: New

$73.04  $98.60
 Free Shipping for this Item

Product Overview

The ECS H110M4-C23 is a micro ATX motherboard designed for 6th and 7th generation Intel Core processors. It offers a solid foundation for your PC build with a variety of features including dual-channel DDR4 memory support, HDMI, and a range of connectivity options.

Technical Specifications

  • CPU: Supports 6th and 7th gen Intel Core, Pentium, and Celeron processors for LGA 1151 socket.
  • Chipset: Intel H110 Express Chipset.
  • Graphics: Supports DirectX 12.
  • Memory: Dual-channel DDR4 architecture; up to 32 GB with 2x288-pin DDR4 DIMM slots, supporting DDR4 2400 non-ECC, Un-buffered SDRAM.
  • Expansion Slots: 1 x PCI Express X16 Gen 3.0, 1 x PCI Express X1 Gen 2.0.
  • Storage: 4 x SATAIII 6Gb/s connectors supported by H110 Express Chipset.
  • Audio: 6-Channel HD audio CODEC, Realtek ALC662.
  • LAN: Realtek 8111H Gigabit Ethernet with Wake-On-LAN support.
  • USB: 4 x USB 3.0 (up to 5Gb/s), 6 x USB 2.0 (up to 480 Mb/s).
  • Rear I/O Panel: PS/2 connectors for keyboard and mouse, HDMI ports, D-Sub (VGA) port, audio ports, and USB ports.
  • Connectors: 24-pin ATX power, 4-pin CPU power, fan connectors, front panel audio, USB headers, and more.
  • BIOS: AMI BIOS with GUI UEFI support, 64 MB SPI Flash ROM, multi-language support.
  • Dimensions: 190mm x 170mm, mATX form factor.
  • OS Support: Compatible with Windows 7 (32-bit, 64-bit), Windows 8.1 (64-bit), and Windows 10 (64-bit); Intel 7th Generation CPUs support Windows 10 (64-bit) only.
  • Certifications: CE/FCC, ErP/EuP, WHQL, and WHCK certified.
  • Bundled Software: ECS Intelligent EZ Utility bundle includes eBLU, eDLU, eSF.
  • Weight: 3.00 LB.
  • Warranty: 1 Year Limited Warranty.

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • ELITE GROUP
  • 89-206-KT2172
  • 881038042442
  • New
  • 0.9 lbs
  • 0 X 0 X 0
  • Feb 19, 2026
  • Dec 16, 2018
Product Identifiers: Brand: Elite Group • Part #: 89-206-KT2172 • UPC: 881038042442 • Category: Chainsaw Parts

Elite Group 89-206-KT2172 ECS H110M4-C23 mATX LGA1151 Motherboard
