SKU: B9RDT4G2TR |  Mfg. Part: 89-206-KE2100  | UPC: 881038038162  |
 1 Reviews  |     Share

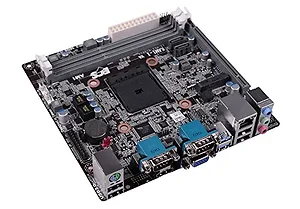

89-206-KE2100 - Elite Group ECS KAM1-I Motherboard AM1 Socket DDR3 Mini-ITX

Special Order
Ships in 1-2 weeks
Condition: New

$45.25  $61.09
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

The ECS KAM1-I motherboard is designed for AMD Athlon Sempron processors and features a compact Mini-ITX form factor. It supports single-channel DDR3 memory architecture and provides a range of connectivity options, making it suitable for various computing tasks.

Technical Specifications

  • CPU: Supports AMD Athlon Sempron processors.
  • 100% solid capacitor design.
  • Please refer to CPU support list for details.
  • Memory: Single-channel DDR3 memory architecture.
  • Supports DDR3 1600 non-ECC, unbuffered SDRAM memory.
  • 2 x 240-pin DDR3 DIMM sockets, supporting up to 16 GB.
  • Please refer to the latest memory support list for details.
  • Expansion Slots: 1 x PCI Express X16 Gen 2.0 slot.
  • 1 x Mini PCI Express X1 slot (does not support Mini SATA).
  • Storage: 2 x Serial ATAIII 6Gb/s connectors.
  • Audio: 6-channel HD audio CODEC with Realtek ALC662.
  • Meets performance requirements for Microsoft WLP 3.08 Vista premium.
  • Supports 5.1 channel audio solution.
  • LAN: Realtek 8111G Gigabit Ethernet Controller with Wake-On-LAN.
  • USB: 2 x USB 3.0 ports (up to 5Gb/s), 6 x USB 2.0 ports (up to 480 Mb/s).
  • Rear Panel I/O: 1 x PS/2 keyboard/mouse connectors, 2 x serial ports (COM), 1 x audio port, 1 x RJ-45 port, 1 x HDMI, 1 x DVI-I (optional), 1 x VGA, 2 x USB 3.0, and 4 x USB 2.0 ports.
  • Connectors and Headers: 1 x 24-pin ATX power connector, 1 x 4-pin CPU_FAN connector, and various headers for expansion and connectivity.
  • BIOS: AMI BIOS with 32 MB SPI Flash ROM.
  • Form Factor: Mini ITX, dimensions 170mm(W) x 170mm(H).
  • OS Support: Windows 7 (32-bit/64-bit), Windows 8 (32-bit/64-bit), Windows 8.1 (32-bit/64-bit).
  • Certifications: CE/FCC, WHQL, WHCK certified.
  • Included Software: ECS Intelligent EZ Utility and CyberLink Media Suite.
  • Dimensions: 9 x 8 x 2 inches; Weight: 1.15 lb.
  • Warranty: 1 Year Warranty.

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • ELITE GROUP
  • 89-206-KE2100
  • 881038038162
  • New
  • 0.6 lbs
  • 7 X 2 X 7
  • Apr 09, 2026
  • Dec 23, 2016
Product Identifiers: Brand: Elite Group • Part #: 89-206-KE2100 • UPC: 881038038162 • Category: Motherboards

89-206-KE2100 - Elite Group ECS KAM1-I Motherboard AM1 Socket DDR3 Mini-ITX
