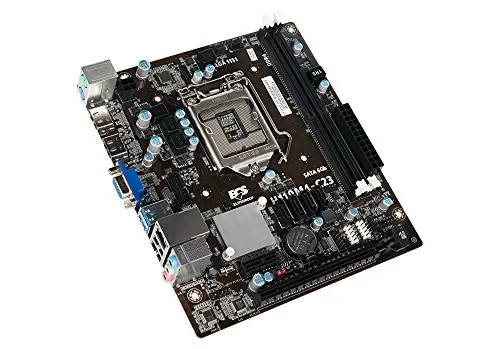

The ECS H110M4-C23 is a robust micro-ATX motherboard designed for 6th generation Intel Core, Pentium, and Celeron series processors. It features a durable 100% solid capacitor design and supports dual-channel DDR4 memory architecture, enabling seamless multitasking and performance. With multiple expansion slots, ample USB ports, and integrated high-definition audio, this motherboard is perfect for both home and office setups.
| CPU | Supports 6th gen Intel Core, Pentium, Celeron series processors for LGA 1151 socket |
|---|---|
| Chipset | Intel H110 Express Chipset |
| Graphics | Supports DirectX 12 |
| Memory | Dual-channel DDR4 architecture; Supports DDR4 2400 non-ECC, Unbuffered SDRAM; 2 x 288-pin DIMM sockets, up to 32 GB |
| Expansion Slots | 1 x PCI Express X16 Gen 3.0 slot, 1 x PCI Express X1 Gen 2.0 slot |
| Storage | 4 x Serial ATA III 6Gb/s |
| Audio | 6-Channel HD audio CODEC with Realtek ALC662 |
| LAN | Realtek 8111H Gigabit Fast Ethernet Controller, Wake-On-LAN |
| USB | 4 x USB 3.0 (up to 5Gb/s), 6 x USB 2.0 (up to 480 Mb/s) |
| Rear Panel I/O | PS/2 Keyboard and Mouse connectors, Audio port, 1 x RJ-45 port, 2 x HDMI ports, 1 x D-Sub (VGA), 2 x USB 3.0, 2 x USB 2.0 |
| Connectors and Headers | 24-pin ATX Power Supply, 4-pin 12V Power, CPU and SYS FAN connectors, Front Panel header, USB headers, 4 x SATA III connectors |
| System BIOS | AMI BIOS with 64 MB SPI Flash ROM, ACPI and DMI, GUI UEFI BIOS |
| Form Factor | mATX |
| OS Support | Windows 7, 8.1, 10 (64-bit) |
| Certifications | CE/FCC, ErP/EcP, WHQL, WHCK |
| Bundled Software | ECS Intelligent EZ Utility, Free CyberLink Media Suite |
| Dimensions | 9 x 11 x 3 inches |
| Weight | 2.00 lbs |
| Warranty | 1 Year Warranty |
