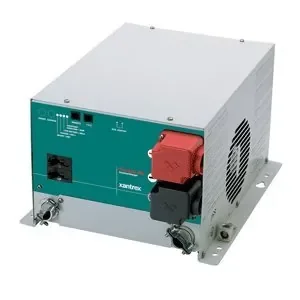

Xantrex 81-2022-12 Freedom 458 Inverter/Charger - 2000W 12V

• MSW AC power inverter with high surge capability
• Automatic 3-stage battery charger
• Temperature compensation with equalization stage for optimal battery charging
• Built-in transfer switch for automatic power source switching
• Power sharing to prevent AC input circuit breaker from tripping
• Customized settings programmable via the Freedom Basic Remote or Link 1000 panels
• Includes a battery temperature sensor
• 30-month warranty

Protection Features

• Over voltage and under voltage protection
• Over-temperature protection
• Overload protection
• Short circuit protection

Electrical Specifications - Inverter

• Output power (continuous): 2000W
• Surge power (AC amps): 50A
• Output frequency regulation: 60Hz
• Inverter voltage regulation: 120V +/-5% true RMS
• Output wave form: Modified sine wave
• Efficiency (full load): 85%
• Peak efficiency: 92%
• No load current draw (idle mode): 0.12A
• AC output connections: Dual - 20/15 Circuit Breakers
• AC input connections: Single
• AC transfer switch: 30A

Electrical Specifications - Charger

• Charge rate: 100A DC
• AC input voltage range: 90-130 VAC
• Battery voltage (nominal): 12 VDC
• Battery voltage range: 10.0-15.5 VDC
• Low battery cut-out: 10.0 VDC
• AC input (max. charge mode): 21A AC
• Bulk charge voltage: 14.3 VDC
• Float charge voltage: 13.4 VDC
• Equalize charge voltage: 16.3 VDC
• Charge control: 3-stage
• Battery type settings: Wet/Gel 1/Gel 2/AGM
• Equalization: Yes
• Temperature sensitive charging: Yes
