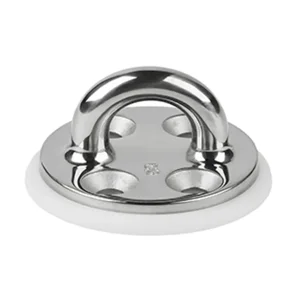

78-17 - Schaefer Marine Schaefer Investment Cast Pad Eye - 3" OD Base

Investment Cast Pad Eye - 3" OD Base

316 Stainless Steel includes delrin(tm) base. Order Backing Plate 97-54 separately.

Specifications:

•  Eye Width 1-1/8" (29 mm)
• Eye Height 7/8" (22 mm)
• Eye Stock 1/2" (13 mm)
• Length 3" (76 mm)
• Width 3" (76 mm)
• Fasteners (4), 3/8" FH (10 mm)
• C/C A 1-1/8" (29 mm)
• C/C B 1-11/16" (43 mm)
• SWL 8500 lbs. (3800 kg)

The Schaefer Investment Cast Pad Eye, part number 78-17, is a durable mounting point designed for applications requiring secure attachment with a high safe working load. This component is constructed from 316 stainless steel, offering resistance to corrosion, and includes a Delrin base for additional stability or surface protection. With a 3-inch OD base, it provides a substantial footprint for load distribution. The pad eye features an eye width of 1-1/8 inches (29 mm) and an eye height of 7/8 inches (22 mm), with a 1/2-inch (13 mm) eye stock. It is secured using four 3/8-inch FH (10 mm) fasteners, with center-to-center measurements of 1-1/8 inches (29 mm) and 1-11/16 inches (43 mm). This product is suitable for industrial or marine environments where a robust, fixed attachment point is necessary, capable of handling a Safe Working Load (SWL) of 8500 lbs (3800 kg). It addresses the need for reliable, heavy-duty securing hardware in demanding operational settings.
