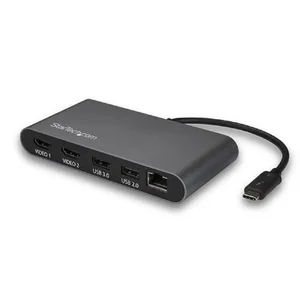

This Thunderbolt? 3 docking station packs big performance into a cost-effective, compact mini dock, delivering essential connections for productivity. The bus-powered Thunderbolt 3 dock lets you connect to dual 4K HDMI displays, Gigabit Ethernet and two USB (Type-A) ports. Compatible with macOS and Windows®, it?s the ideal accessory for your MacBook Pro, Dell? XPS or other Thunderbolt 3 laptop. Create a Dual-4K 60Hz Workstation Great for editing 4K video or other Ultra HD tasks, this portable Thunderbolt 3 to HDMI dock supports 40Gbps of throughput and 4K resolution at 60Hz on dual HDMI monitors, through a single Thunderbolt 3 port. Run resource-demanding applications on two independent displays without draining system resources. Connect your laptop to: 2x 4K HDMI displays (up to 4096 x 2160p @ 60Hz) The Ports You Need Most To enhance your productivity, the Gigabit Ethernet port (with PXE Boot and Wake-on-LAN support) ensures reliable wired network access. A USB 3.0 Type-A port, with ample space around it, lets you connect a USB device, such as a flash drive, for easy file access. Connect another USB device using the USB 2.0 Type-A port. Bus Powered for Easy Portability This mini dual 4K docking station offers a versatile solution for permanent and shared office workspaces. It?s bus-powered, with no external power required. For flexible setup, the attached USB-C cable has an extended length of (7.9 in./ 20 cm). The TB3DKM2HD is Thunderbolt Certified, and backed by a StarTech.com 3-year warranty and free lifetime technical support.
Technical Specifications
HARDWARE 4K Support:Yes Bus Type:Thunderbolt 3 Chipset ID: Intel - Alpine Ridge JHL6540 Intel - WGI210AT Texas Instruments - TPS65983 ASMedia - ASM1042A Parade - PS176 Displays Supported:2 Fast-Charge Port(s):No Industry Standards: Thunderbolt 3 IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0 and 1.1 USB 2.0 - Backward compatible with 1.1 PERFORMANCE Auto MDIX:Yes Compatible Networks:10/100/1000 Mbps Full Duplex Support:Yes Maximum Data Transfer Rate: 40 Gbps (Thunderbolt 3) 5 Gbps (USB 3.0) 2 Gbps (Ethernet Full-Duplex) Maximum Digital Resolutions: Dual 4K displays - HDMI 4096 x 2160p at 60Hz / 3840 x 2160p at 60Hz PXE:Yes Type and Rate:Thunderbolt 3 - 40 Gbit/s UASP Support:Yes CONNECTOR(S) Connector Type(s): 1 - ThunderboltTM 3 USB-C (24-pin) Male 2 - HDMI Female 1 - USB Type-A (9 pin) USB 3.0 Female 1 - USB Type-A (4 pin) USB 2.0 Female 1 - RJ-45 Female SOFTWARE OS Compatibility: Windows 7, 8, 8.1, 10 macOS 10.12 - 10.13 SPECIAL NOTES / REQUIREMENTS Note:A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K). System and Cable Requirements:Thunderbolt 3 equipped computer with a Thunderbolt 3 port. POWER Power Source:USB-Powered
Product Details
Manufacturer:
Model Number:
ASIN:
UPC:
Condition:
Weight:
Dimensions:
Updated:
Added:
STARTECH
5DL398
B07DB5DSXX
065030872911
New
1 lbs
5 X 1 X 2
May 09, 2026
Jul 24, 2020
Product Identifiers:
Brand: Startech •
Part #: 5DL398 • UPC: 065030872911 • ASIN: B07DB5DSXX • Category: AV Cables & Adapters
